Testing iOS SDK - Card Payments
With Judopay’s iOS Mobile SDK solution, a minimal integration is all that is required to enable you to:
- Take a card payment
- Take a card preAuth
- Take a card token payment
- Take a card token preAuth
- Check the validity of a card, using checkCard
- Tokenise the card information into an encrypted string, using registerCard
Depending on your use case and app configurations, some of the following scenarios may not be relevant to you.
Follow our suggested guidelines to simulate positive / happy path scenarios, in the sandbox environment, using the Test Cards to test your integration is working correctly.
This will give you confidence for when your integration goes live.
*These images are from our dummy app, your interface may look different.
Suggested Test Scenario
Process a card:
- payment
- preAuth.
Use the test card details here.
TIP: The app is using the payment / preAuth flow, which has been set up in the payment configuration object.
Expected Outcome

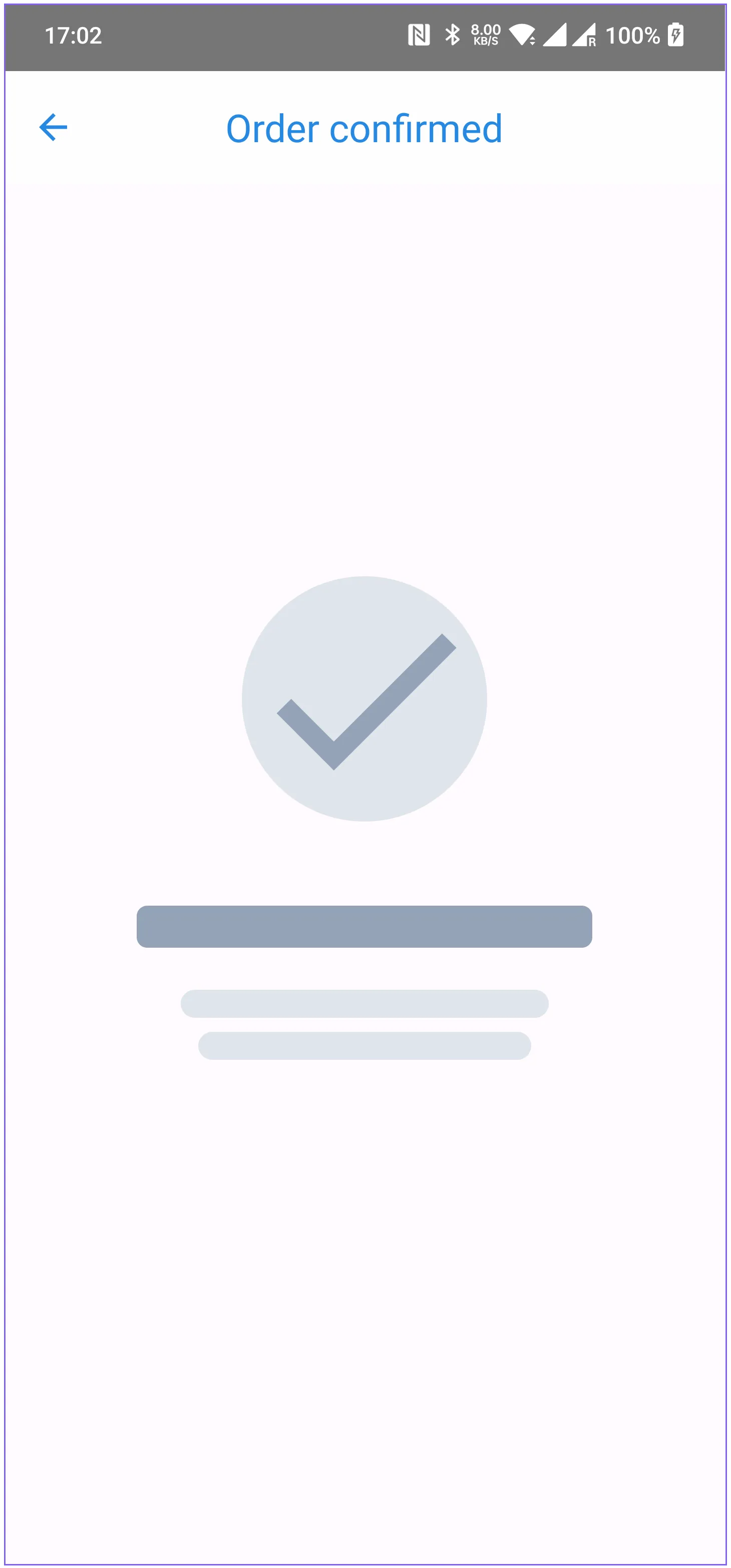

You will be directed to a successful transaction completed page. *
Suggested Test Scenario
Process a card:
- token payment
- token preAuth
TIP: The app is using the token payment / token preAuth flow, which has been set up in the payment configuration object.
If your app allows the consumer to save their card details, use the save card scenario and use the saved card token reference to make a payment.
Expected Outcome
You will be directed to a successful transaction completed page. *
Suggested Test Scenario
Process a card payment prompting the consumer to enter their billing address.
Expected Outcome
Depending on your use case and app configuration:
- The iOS SDK prompts the consumer to enter their billing details.
Example Flow: Prompting the consumer to enter their billing address: *
Suggested Test Scenario
Process a card payment without the billing address fields displayed.
Expected Outcome
Depending on your use case and app configuration:
- The iOS SDK does not prompt the consumer to enter their billing details.
If you process a token payment, the billing details form will not be displayed in the payment flow.
This is due to the card token being used, which already has the cardholders details securely saved.

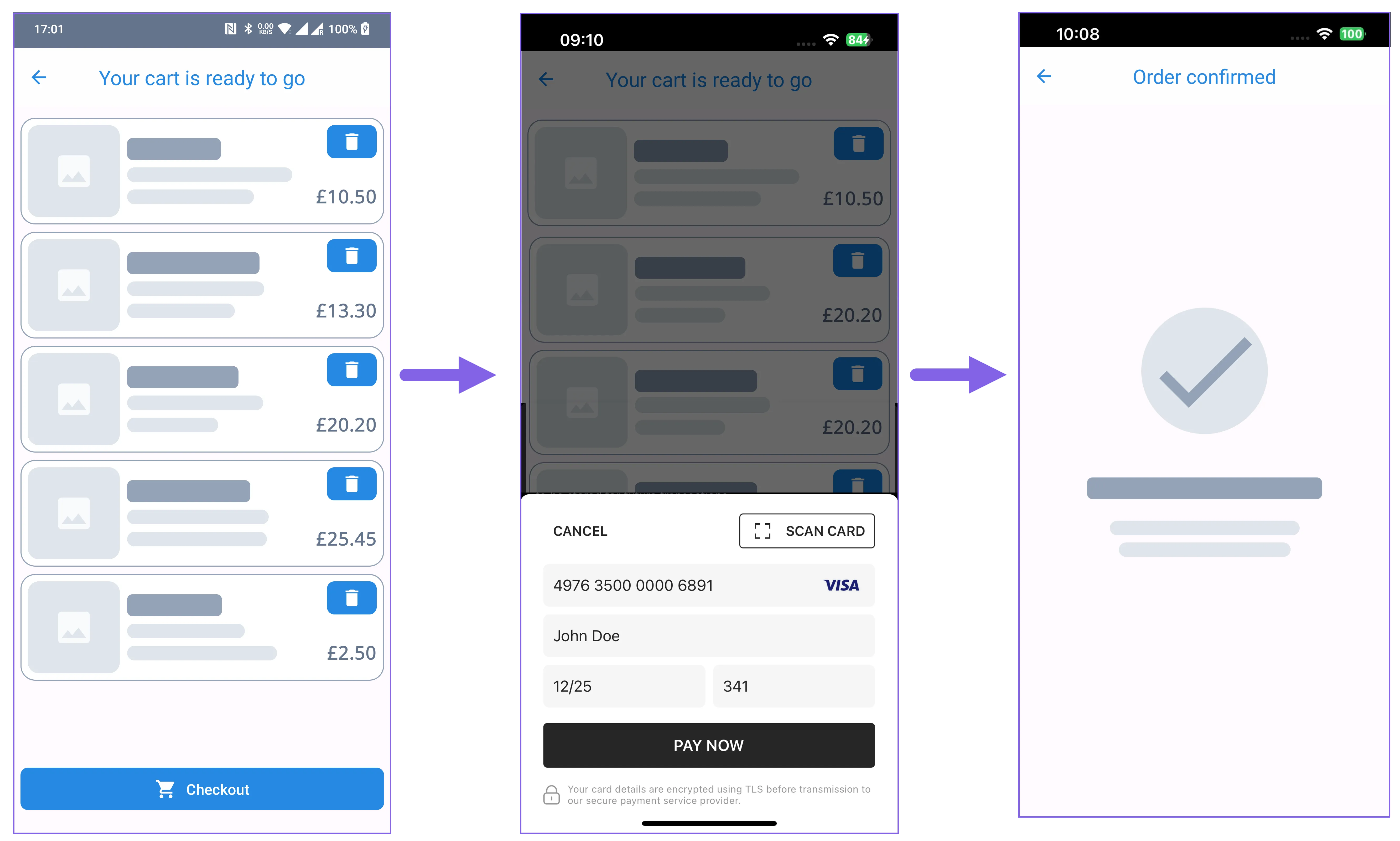

Example 'No Challenge' Flow: *
Suggested Test Scenario
Handle a 3D Secure 2 flow.
TIP: It is useful to have an understanding of the full 3DS 2 payment flow, including the conditional steps, to verify how it relates to the user journey in your app. For more information on the 3DS 2 flow, see Overview of the Frictionless and Challenge Flow.
Expected Outcome
Depending on your use case and app configuration:
- Use the Card Holder Name table to trigger any 3D Secure 2 flow, see CardHolderName Table.
- Your app explicitly forces a challenge flow, so the consumer will be directed to the challenge page.
For the purpose of this exercise, below we have an example of a:
- Frictionless flow.
- Successful challenge flow.
- Unsuccessful challenge flow.
Example 3D Secure 2 'Frictionless' Flow: *
Example Successful 3D Secure 2 'Challenge' Flow: *

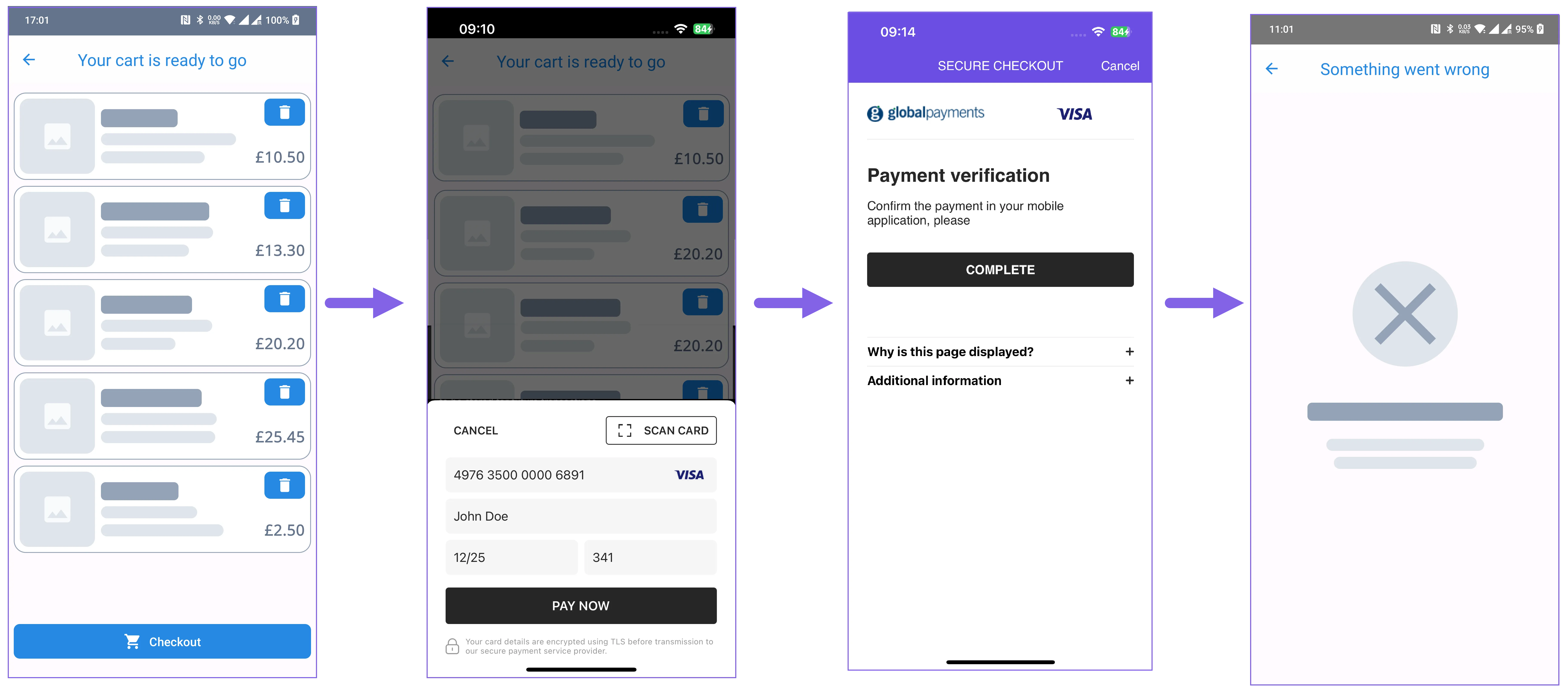

Example Unsuccessful 3D Secure 2 'Challenge' Flow: *
To simulate a successful card payments request, use the Test Cards.
Calling the Mobile SDK Functions
For more information on integrating your iOS app, including calling the Mobile SDK functions see Integrating with Judopay.
Declines can occur for various reasons, it can be impossible to simulate all the negative flows in a sandbox environment.
- How your app handles negative flows
- Your customer's experience should a negative flow occur:
- Logic to communicate error messages
- Customise how your app responds
- How to maintain application consistency
*These images are from our dummy app, your interface may look different.
Suggested Negative Test Scenario
To handle a decline scenario, attempt to perform a card:
- payment
- preAuth
request decline using the following:
- cardNumber: 4221690000004963
- cv2: 452
- expiryDate: 12/24
Expected Error and Description
Card declined

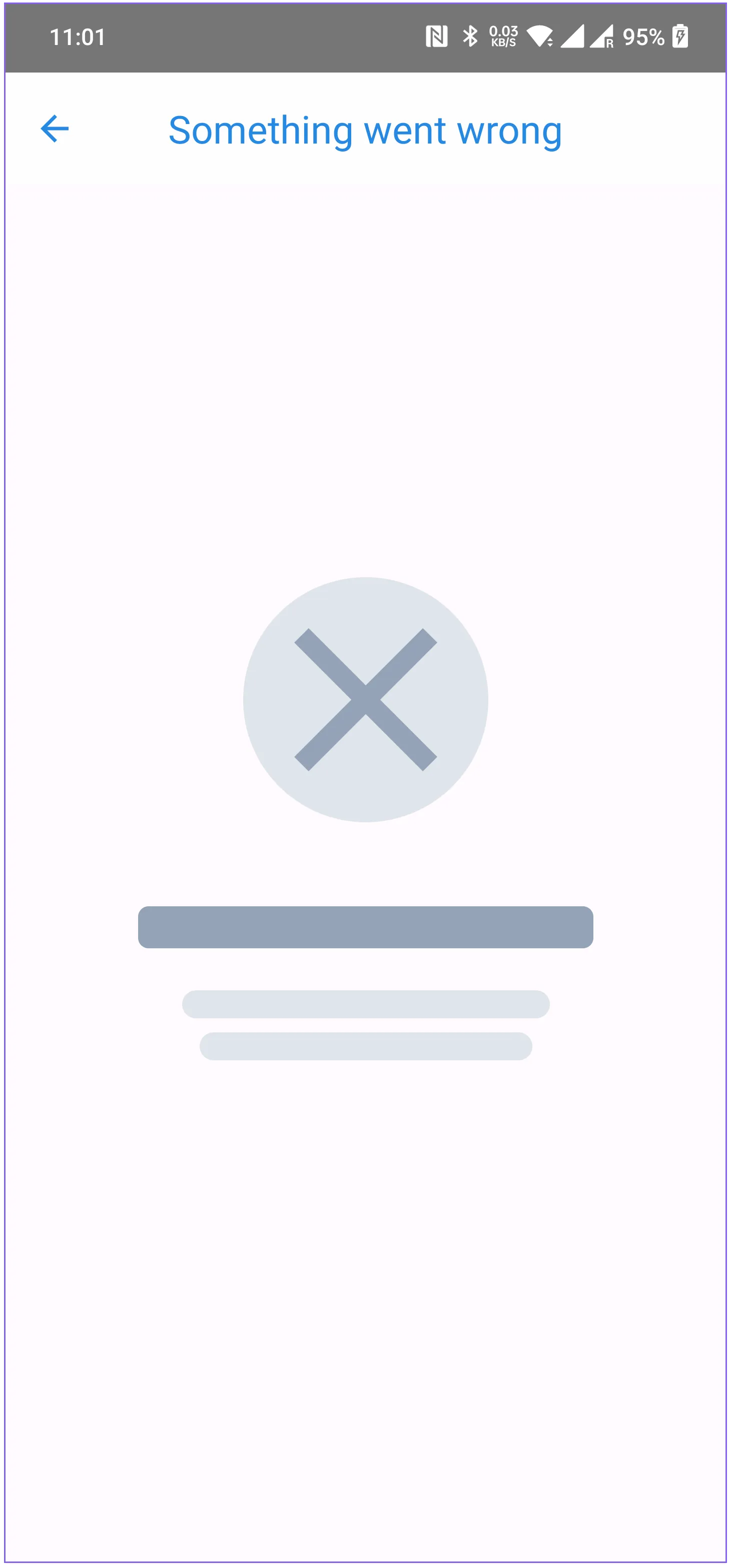

You will be re-directed to an error page with an error message.
*
Suggested Negative Test Scenario
To handle a decline scenario, attempt to perform a card:
- payment
- preAuth request decline.
Using the following example use cases:
- Enter an invalid cvv
- User taps the cancel button on the 3DS 2 challenge screen
Expected Error and Description
Card declined
You will be re-directed to an error page with an error message.
*
Suggested Negative Test Scenario
Attempt to perform a card payment where the incorrect card details are entered.
This will perform the field validation checks.
Expected Error and Description
Payment declined

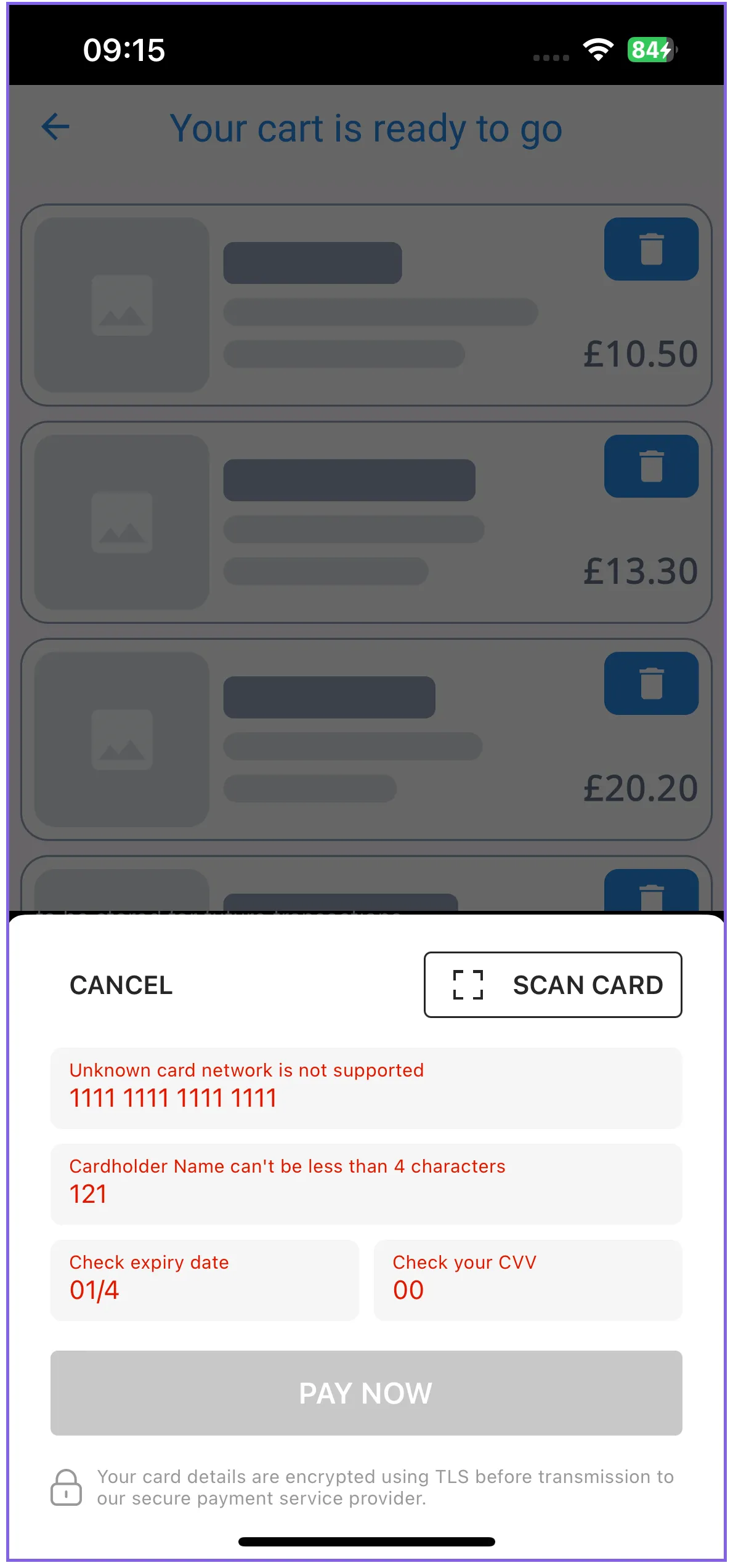

Form validation error messages will be displayed in the form.
The Pay Now button will be greyed out. *
