Deprecated Integration Methods

PHP Server SDK Integration

We no longer support the PHP SDK and it is now deprecated.

Prerequisites

PHP 5.5 and above

Composer Package Manager

Integration

Using the Composer Package Manager:

Add the Judopay package to your composer.json file: "require": {"judopay/judopay-sdk": "5.1.0"}

Execute: $ composer install

Make the Judopay SDK classes available to your application, by adding the following to your file: require 'vendor/autoload.php';

Only sandbox API tokens and secrets will work in the sandbox. Using the wrong tokens and secrets will result in an authorisation failure.

Setup

Ensure all integration steps are completed.

Add your app’s sandbox Token and Secret: var client = JudoPaymentsFactory.Create( JudoEnvironment.Sandbox, <yourApiToken>, <yourApiSecret> );

Ensure the SDK is configured for the sandbox environment.

Use the test cards provided in the Judopay Portal:

Tools > Generating transactions

Create a separate app for your backend with the Make Payments permission enabled.

Test all your required payment types in the sandbox environment before going live.

Create a new Judopay object, with your API credentials: $judopay = new \Judopay( array( 'apiToken' => 'your-token', 'apiSecret' => 'your-secret', 'judoId' => 'your-judo-id', //Set to true on production, defaults to false which is the sandbox 'useProduction' => false ) );

Ensure the SDK is configured for the environment you are targeting. For example, if you are using the sandbox environment: 'useProduction' => false.

For the purpose of this exercise, the sandbox token and secret have been added.

The Server SDK allows for further configuration: Logging To help debug you can attach a logger library. Validation error details can be found in the modelErrors array. For example if a required field is missing from the model.

Other Payment Methods using the Server SDKs To send payment requests with the wallet details from Apple Pay™ and Google Pay™, see our Transaction API for more information.

Check Card

When making Token Payments, you can obtain the card token from the Check Card response.

Create an instance of the CheckCard Model:

//Prepare the CheckCard request
$checkCardRequest = $judopay->getModel('CheckCard');

$checkCardRequest->setAttributeValues(
    array(
        'judoId' => 'yourJudoId',
        'yourConsumerReference' => 'yourConsumerReference',
        'yourPaymentReference' => 'yourPaymentReference',
        'cardNumber' => '4976000000003436',
        'expiryDate' => '12/30',
        'cv2' => '452',
        'cardAddress' => array(
            'address1' => '41 Luke St',
            'postCode' => 'EC2A 4DP',
            'town' => 'London',
            'countryCode' => 826
        ),
        // PrimaryAccountDetails only required for MCC6012 merchants
        'primaryAccountDetails' => array(
            'name' => 'Smith',
            'accountNumber' => '1234567',
            'dateOfBirth' => '2000-12-31',
            'postCode' => 'EC2A 4DP'
        ),
        // Following are for 3DS2 transactions
        'phoneCountryCode' => '44',
        'mobileNumber' => '7999123456',
        'emailAddress' => '[email protected]',
        'cardHolderName' => 'John Smith',
        'threeDSecure' => array(
            'authenticationSource'      => 'Browser',
            'challengeRequestIndicator' => 'ChallengeAsMandate',
            'methodNotificationUrl'     => 'https://yourMethodNotificationUrl',
            'challengeNotificationUrl'  => 'https://yourMethodNotificationUrl'
        )
    )
);

try {
    //Send the request to Judopay
    $response = $checkCardRequest->create();

    if ($response['methodUrl'])
    {
        // Device details are required - POST md as threeDSMethodData to methodUrl
        $methodUrl = $response['methodUrl'];
        $md = $response['md'];
    }
    else if ($response['challengeUrl'])
    {
        // Challenge is required - POST creq to challengeUrl
        $challengeUrl = $response['challengeUrl'];
        $creq = $response['creq'];
    }
    else
    {
        $receiptId = $response['receiptId'];
        if ($response['result'] == 'Success')
        {
            $cardToken = $response['cardDetails']['cardToken'];
        }
    }
}
catch (\Judopay\Exception\ApiException $apiException)
{
    $errorResponse = "{\"error\":\"{$apiException->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Judopay\Exception\ValidationError $validationErrors)
{
    // Required attributes are missing from the request
    $errorResponse = "{\"error\":\"{$validationErrors->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Exception $e)
{
    $errorResponse = "{\"error\":\"".$e->getMessage()."\",\"result\":\"Error\"}";
}

You do not need to set an amount. This is automatically set by Judopay's Transaction API in order to check the card.

*Mastercard Recommends: These fields are recommended rather than mandatory. Transactions will continue to be processed if not supplied. See, Mastercard Recommended 3D Secure 2 Fieldsdd.

Parameter	Description
judoId String Required	Unique ID supplied by Judopay. Specific to a merchant and/or location. Format: 100100100 Maximum length 9 characters. Do not include spaces or dashes.
yourConsumerReference String Required	Unique reference to anonymously identify your customer. Advisable to use GUIDs. Must be below 40 characters.
yourPaymentReference String Required	Your unique reference for this payment. Format: Maximum length 50 characters. This value should be unique in order to protect your customers against duplicate transactions. With a server side integration, if a payment reference is not supplied, the transaction will not be processed.
phoneCountryCode String Recommended *	The country code of the consumer's phone. Format: Maximum length 3 characters. Only numbers allowed. Do not include special characters or spaces. Must be set if mobileNumber is set. If not set, default = 44
mobileNumber String Recommended *	Consumer’s valid mobile number. Mastercard recommends providing at least one contact method for Mastercard 3D Secure authenticated transactions. Format: Maximum length 15 characters. Only numbers allowed. Do not include special characters or spaces. Must be set if phoneCountryCode is set.
cardHolderName String Recommended *	The card name of the consumer If the cardHolderName field is displayed to the user in the payment form (isCardHolderNameVisible: true is set in the iFrame config), the value entered in the payment form will overwrite this value.
challengeRequestIndicator String Optional	Indicates the type of challenge request you wish to apply. Set this to one of the following strings: noPreference noChallenge No challenge required. challengePreferred A challenge is preferred for this transaction. challengeAsMandate Must challenge this transaction. This should not be included in the same configuration object as scaExemption.
scaExemption String Optional	To apply for an exemption from SCA, for a customer initiated transaction. Set this to one of the following strings: lowValue Transactions up to €45 do not require SCA, up to a maximum of five consecutive transactions, or a cumulative limit of €100. trustedBeneficiary Provides the cardholder the option to add the merchant to their trusted list. transactionRiskAnalysis Allows for certain remote transactions to be exempt from SCA, provided a robust risk analysis is performed. This should not be included in the same configuration object as challengeRequestIndicator.
initialRecurringPayment Boolean Optional	Indicates if this initial payment is part of a recurring payment.
billingAddress Object Optional	Card holder's billing address. Properties: address1 (Recommended)* address2 (optional) town state(only required if country is USA/Canada) Format: string ISO Alpha-2 Code (e.g. California = "CA") country Format: string See here for the list of valid ISO 3166-1 format country codes. postCode If the billingAddress is provided, the postcode is required.
emailAddress String Recommended *	Consumer’s valid email address. Mastercard recommends providing at least one contact method for Mastercard 3D Secure authenticated transactions.

If result.HasError = false, check the Payment Receipt Model response.

Save Card

Use saveCard to save the consumer's card details in Judopay's card vault.

When making Token Payments, you can obtain the card token from the Save Card response.

Create an instance of the SaveCardModel:

//Prepare the SaveCard request
$saveCardRequest = $judopay->getModel('SaveCard');

$saveCardRequest->setAttributeValues(
    array(
        'judoId' => 'yourJudoId',
        'yourConsumerReference' => 'yourConsumerReference',
        'cardNumber' => '4976000000003436',
        'expiryDate' => '12/30'
    )
);

try {
    //Send the request to Judopay
    $response = $saveCardRequest->create();

    $receiptId = $response['receiptId'];
    if ($response['result'] == 'Success')
    {
        $cardToken = $response['cardDetails']['cardToken'];
    }
}
catch (\Judopay\Exception\ApiException $apiException)
{
    $errorResponse = "{\"error\":\"{$apiException->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Judopay\Exception\ValidationError $validationErrors)
{
    // Required attributes are missing from the request
    $errorResponse = "{\"error\":\"{$validationErrors->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Exception $e)
{
    $errorResponse = "{\"error\":\"".$e->getMessage()."\",\"result\":\"Error\"}";
}

*Mastercard Recommends: These fields are recommended rather than mandatory. Transactions will continue to be processed if not supplied. See, Mastercard Recommended 3D Secure 2 Fieldsdd.

Parameter	Description
cardNumber String Required	Submitted without whitespace or non-numeric characters.
expiryDate String Optional	The expiry date of the card. Format: MM/YY
cardAddress Object Recommended *	Card holder's address. Values: address1 (Recommended)* address2 (optional) town state (only required if country is USA/Canada) country See here for the list of valid ISO 3166-1 format country codes. postcode If the cardAddress is provided, the postcode is required.
startDate String Optional	For Maestro cards: Format: MM/YY
issueNumber Integer Optional	For Maestro cards: A number between 1 and 2 digits (from 0 to 99). Located on the front of the card.
yourConsumerReference String Required	Unique reference to anonymously identify your customer. Advisable to use GUIDs. Must be below 40 characters.
judoId String Required	Unique ID supplied by Judopay. Specific to a merchant and/or location. Format: 100100100 Maximum length 9 characters. Do not include spaces or dashes.
currency String Optional	The currency of the transaction. Any ISO 4217 alphabetic currency code: GBP USD EUR
cardHolderName String Recommended *	The card name of the consumer.

If result.HasError = false, check the Payment Receipt Model response.

Token Payments

You can create a token payment following a: Payment | PreAuth | Save Card operation, as a card token is always returned.

Create an instance of the TokenPaymentModel:

//Prepare the TokenPayment request
$tokenPaymentRequest = $judopay->getModel('TokenPayment');

$tokenPaymentRequest->setAttributeValues(
    array(
        'judoId' => 'yourJudoId',
        'yourConsumerReference' => 'yourConsumerReference',
        'yourPaymentReference' => 'yourPaymentReference',
        'cardToken' => 'cardTokenFromPreviousTransaction',
        'cv2' => '452',
        'amount' => 1.01,
        'currency' => 'GBP',
        // PrimaryAccountDetails only required for MCC6012 merchants
        'primaryAccountDetails' => array(
            'name' => 'Smith',
            'accountNumber' => '1234567',
            'dateOfBirth' => '2000-12-31',
            'postCode' => 'EC2A 4DP'
        ),
        // Following are for 3DS2 customer-initiated transactions
        'phoneCountryCode' => '44',
        'mobileNumber' => '7999123456',
        'emailAddress' => '[email protected]',
        'cardHolderName' => 'John Smith',
        'threeDSecure' => array(
            'authenticationSource'      => 'Browser',
            'challengeRequestIndicator' => 'ChallengeAsMandate',
            'methodNotificationUrl'     => 'https://yourMethodNotificationUrl',
            'challengeNotificationUrl'  => 'https://yourMethodNotificationUrl'
        ),
        // Following are for merchant-initiated transactions
        'recurringPayment' => true,
        'recurringPaymentType' => 'mit', // Unscheduled, use recurring for scheduled payments
        'relatedReceiptId' => 'receiptIdOfOriginalCustomerInitiatedTransaction'
    )
);

try {
    //Send the request to Judopay
    $response = $tokenPaymentRequest->create();

    if ($response['methodUrl'])
    {
        // Device details are required - POST md as threeDSMethodData to methodUrl
        $methodUrl = $response['methodUrl'];
        $md = $response['md'];
    }
    else if ($response['challengeUrl'])
    {
        // Challenge is required - POST creq to challengeUrl
        $challengeUrl = $response['challengeUrl'];
        $creq = $response['creq'];
    }
    else
    {
        $receiptId = $response['receiptId'];
        if ($response['result'] == 'Success')
        {
            $cardToken = $response['cardDetails']['cardToken'];
        }
    }
}
catch (\Judopay\Exception\ApiException $apiException)
{
    $errorResponse = "{\"error\":\"{$apiException->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Judopay\Exception\ValidationError $validationErrors)
{
    // Required attributes are missing from the request
    $errorResponse = "{\"error\":\"{$validationErrors->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Exception $e)
{
    $errorResponse = "{\"error\":\"".$e->getMessage()."\",\"result\":\"Error\"}";
}

*Mastercard Recommends: These fields are recommended rather than mandatory. Transactions will continue to be processed if not supplied. See, Mastercard Recommended 3D Secure 2 Fieldsdd.

Parameter	Description
cardToken String Required	Save the cardToken into your database to send back to Judopay, instead of inserting the consumer's card details.
yourConsumerReference String Required	Unique reference to anonymously identify your customer. Advisable to use GUIDs. This must match the original yourConsumerReference when the token was initially created.
yourPaymentReference String Required	Set your unique reference for this payment. Format: Maximum length 50 characters. This value should be unique in order to protect your customers against duplicate transactions. With a server side integration, if a payment reference is not supplied, the transaction will not be processed.
yourPaymentMetaData IDictionary Optional	Additional information associated with a transaction to help reconcile.
judoId String Required	Unique ID supplied by Judopay. Specific to a merchant and/or location. Format: 100100100 Maximum length 9 characters. Do not include spaces or dashes.
amount Decimal Required	The amount to process. Format: Two decimal places For currencies using a different structure please contact Judopay for support.
currency String Optional	The currency of the transaction. Any ISO 4217 alphabetic currency code: GBP USD EUR
userAgent String Optional	Consumer's browser details.
deviceCategory String Optional	The type of device where the consumer is carrying out the transaction: Mobile
acceptHeaders String Optional	Consumer's browser details.
cardAddress Object Optional	Card holder's billing address. Values: address1 (Recommended)* address2 (optional) town state (only required if country is USA/Canada) country See here for the list of valid ISO 3166-1 format country codes. postcode If the billingAddress is provided, the postcode is required.
initialRecurringPayment Boolean Optional	Indicates if this initial payment is part of a recurring payment.
recurringPayment Boolean Optional	Indicates if this is a recurring payment.
recurringPaymentType enum Optional	Type of recurring payment. Values: RECURRING Scheduled regular payment. MIT (Merchant Initiated Transaction) Unscheduled regular payment. If a value is not set, the default value = RECURRING
relatedReceiptId String Optional	The receiptId returned from the first subscription payment. Adding the relatedReceiptId references the subsequent recurring transactions to the original transaction.

If result.HasError = false, check the Payment Receipt Model response.

Creating a PreAuth

Create an instance of the CardPayment Model:

//Prepare the Preauth request
$preauthRequest = $judopay->getModel('Preauth');

$preauthRequest->setAttributeValues(
    array(
        'judoId' => 'yourJudoId',
        'yourConsumerReference' => 'yourConsumerReference',
        'yourPaymentReference' => 'yourPaymentReference',
        'cardNumber' => '4976000000003436',
        'expiryDate' => '12/30',
        'cv2' => '452',
        'amount' => 1.01,
        'currency' => 'GBP',
        'cardAddress' => array(
            'address1' => '41 Luke St',
            'postCode' => 'EC2A 4DP',
            'town' => 'London',
            'countryCode' => 826
        ),
        // PrimaryAccountDetails only required for MCC6012 merchants
        'primaryAccountDetails' => array(
            'name' => 'Smith',
            'accountNumber' => '1234567',
            'dateOfBirth' => '2000-12-31',
            'postCode' => 'EC2A 4DP'
        ),
        // Following are for 3DS2 transactions
        'phoneCountryCode' => '44',
        'mobileNumber' => '7999123456',
        'emailAddress' => '[email protected]',
        'cardHolderName' => 'John Smith',
        'threeDSecure' => array(
            'authenticationSource'      => 'Browser',
            'challengeRequestIndicator' => 'ChallengeAsMandate',
            'methodNotificationUrl'     => 'https://yourMethodNotificationUrl',
            'challengeNotificationUrl'  => 'https://yourMethodNotificationUrl'
        )
    )
);

try {
    //Send the request to Judopay
    $response = $preauthRequest->create();

    if ($response['methodUrl'])
    {
        // Device details are required - POST md as threeDSMethodData to methodUrl
        $methodUrl = $response['methodUrl'];
        $md = $response['md'];
    }
    else if ($response['challengeUrl'])
    {
        // Challenge is required - POST creq to challengeUrl
        $challengeUrl = $response['challengeUrl'];
        $creq = $response['creq'];
    }
    else
    {
        $receiptId = $response['receiptId'];
        if ($response['result'] == 'Success')
        {
            $cardToken = $response['cardDetails']['cardToken'];
        }
    }
}
catch (\Judopay\Exception\ApiException $apiException)
{
    $errorResponse = "{\"error\":\"{$apiException->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Judopay\Exception\ValidationError $validationErrors)
{
    // Required attributes are missing from the request
    $errorResponse = "{\"error\":\"{$validationErrors->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Exception $e)
{
    $errorResponse = "{\"error\":\"".$e->getMessage()."\",\"result\":\"Error\"}";
}

*Mastercard Recommends: These fields are recommended rather than mandatory. Transactions will continue to be processed if not supplied. See, Mastercard Recommended 3D Secure 2 Fieldsdd.

Parameter	Description
judoId String Required	Unique ID supplied by Judopay. Specific to a merchant and/or location. Format: 100100100 Maximum length 9 characters. Do not include spaces or dashes.
amount Decimal Required	The amount to process. Format: Two decimal places For currencies using a different structure please contact Judopay for support.
currency String Required	The currency of the transaction. Any ISO 4217 alphabetic currency code: GBP USD EUR
yourConsumerReference String Required	Unique reference to anonymously identify your customer. Advisable to use GUIDs. Must be below 40 characters.
yourPaymentReference String Required	Your unique reference for this payment. Format: Maximum length 50 characters. This value should be unique in order to protect your customers against duplicate transactions. With a server side integration, if a payment reference is not supplied, the transaction will not be processed.
phoneCountryCode String Recommended *	The country code of the consumer's phone. Format: Maximum length 3 characters. Only numbers allowed. Do not include special characters or spaces. Must be set if mobileNumber is set. If not set, default = 44
mobileNumber String Recommended *	Consumer’s valid mobile number. Mastercard recommends providing at least one contact method for Mastercard 3D Secure authenticated transactions. Format: Maximum length 15 characters. Only numbers allowed. Do not include special characters or spaces. Must be set if phoneCountryCode is set.
cardHolderName String Recommended *	The card name of the consumer. If the cardHolderName field is displayed to the user in the payment form (isCardHolderNameVisible: true is set in the iFrame config), the value entered in the payment form will overwrite this value.
challengeRequestIndicator String Optional	Indicates the type of challenge request you wish to apply. Set this to one of the following strings: noPreference noChallenge No challenge required. challengePreferred A challenge is preferred for this transaction. challengeAsMandate Must challenge this transaction. This should not be included in the same configuration object as scaExemption.
scaExemption String Optional	To apply for an exemption from SCA, for a customer initiated transaction. Set this to one of the following strings: lowValue Transactions up to €45 do not require SCA, up to a maximum of five consecutive transactions, or a cumulative limit of €100. trustedBeneficiary Provides the cardholder the option to add the merchant to their trusted list. transactionRiskAnalysis Allows for certain remote transactions to be exempt from SCA, provided a robust risk analysis is performed. This should not be included in the same configuration object as challengeRequestIndicator.
initialRecurringPayment Boolean Optional	Indicates if this initial payment is part of a recurring payment.
billingAddress Object Optional	Card holder's billing address. Properties: address1 (Recommended)* address2 (optional) town state (only required if country is USA/Canada) Format: string ISO Alpha-2 Code (e.g. California = "CA") country Format: string See here for the list of valid ISO 3166-1 format country codes. postCode If the billingAddress is provided, the postcode is required.
emailAddress String Recommended *	Consumer’s valid email address. Mastercard recommends providing at least one contact method for Mastercard 3D Secure authenticated transactions.
primaryAccountDetails Object Optional	This is Mandatory for merchants who have an MCC code of 6012, 6051 and 7299. Properties: name This is the surname. accountNumber postCode dateOfBirth Format: YYYY-MM-DD
businessApplicationId String Optional	Required for AFT transactions. Identifies the type / purpose of the transaction. Format: Maximum 2 characters Values: AA – Account to account FD – Funds disbursement FT – Funds transfer PD – Payroll TU – Top up WT – Digital wallet Account Type Indicates the recipient's account type. Select from the following values: 00 - Other 01 - TRN & BAN 02 - IBAN 03 - Card (first6 & last4) 06 - BAN & BIC (SWIFT code) Note: If businessApplicationId is provided, aftRecipientInformation must also be provided.
aftRecipientInformation Object Optional	Required for AFT transactions. Contains recipient details. Note: If aftRecipientInformation is provided, businessApplicationId must also be provided. Values: firstName Recipient’s first name. addressLine1 Recipient’s address line 1. countryCode ISO 3166-1 alpha-2 country code. accountType Type of recipient account. accountId Unique identifier of the recipient account. For more information, see Account Funding Transactions.

If result.HasError = false, check the Payment Receipt Model response.

Creating a Collection

Partial collections are supported. Use the same ReceiptId to collect different amounts up to the original preauth amount. You cannot collect more than the original amount.

Following the preAuth, prepare the collection:

//Prepare the Collection request
$collectionRequest = $judopay->getModel('Collection');

$collectionRequest->setAttributeValues(
    array(
        'receiptId' => 'yourPreauthReceiptId',
        'yourPaymentReference' => 'yourCollectionReference',
        'amount' => 1.01
    )
);

try {
    //Send the request to Judopay
    $response = $collectionRequest->create();

    $receiptId = $response['receiptId'];
    $status = $response['result'];
}
catch (\Judopay\Exception\ApiException $apiException)
{
    $errorResponse = "{\"error\":\"{$apiException->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Judopay\Exception\ValidationError $validationErrors)
{
    // Required attributes are missing from the request
    $errorResponse = "{\"error\":\"{$validationErrors->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Exception $e)
{
    $errorResponse = "{\"error\":\"".$e->getMessage()."\",\"result\":\"Error\"}";
}

Parameter	Description
receiptId String Required	Judopay's reference for the pre authorisation that is to be collected.
amount Decimal Required	The amount to collect must not exceed the amount of the original pre authorisation. Format: Two decimal places For currencies using a different structure please contact Judopay for support.
currency String Required	If specified, the currency must match the original pre authorisation. If not specified, the currency of the original pre authorisation will be used. Any ISO 4217 alphabetic currency code: GBP USD EUR
yourPaymentReference String Required	Your unique reference for this collection. Format: Maximum length 50 characters. This is not the yourPaymentReference of the original pre authorisation.
yourPaymentMetaData String Optional	Key-value map for additional metadata associated with this transaction. Will be stored but not processed or passed to gateways. Do not include sensitive information like card numbers.

Check the Payment Receipt Model response.

Voiding a PreAuth Transaction

Cancel a pre-authorised transaction if the funds have not yet settled.

Voids cannot be performed on transactions that have been collected (partial or full).

Create a void request:

//Prepare the Void request
$voidRequest = $judopay->getModel('VoidTransaction');

$voidRequest->setAttributeValues(
    array(
        'judoId' => 'yourJudoId', // This attribute will not be required in the next version of the SDK
        'receiptId' => 'yourPreauthReceiptId',
        'yourPaymentReference' => 'yourVoidReference',
        'amount' => 1.01
    )
);

try {
    //Send the request to Judopay
    $response = $voidRequest->create();

    $receiptId = $response['receiptId'];
    $status = $response['result'];
}
catch (\Judopay\Exception\ApiException $apiException)
{
    $errorResponse = "{\"error\":\"{$apiException->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Judopay\Exception\ValidationError $validationErrors)
{
    // Required attributes are missing from the request
    $errorResponse = "{\"error\":\"{$validationErrors->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Exception $e)
{
    $errorResponse = "{\"error\":\"".$e->getMessage()."\",\"result\":\"Error\"}";
}

Parameter	Description
receiptId String Required	Judopay's reference for the pre authorisation that is to be voided.
amount Decimal Required	The amount to void. Format: Two decimal places For currencies using a different structure please contact Judopay for support.
currency String Required	If specified, the currency must match the original pre authorisation. If not specified, the currency of the original pre authorisation will be used. Any ISO 4217 alphabetic currency code: GBP USD EUR
yourPaymentReference String Required	Your unique reference for this void. Format: Maximum length 50 characters. This is not the yourPaymentReference of the original pre authorisation.
yourPaymentMetaData String Optional	Key-value map for additional metadata associated with this transaction. Will be stored but not processed or passed to gateways. Do not include sensitive information like card numbers.

If result.HasError = false, check the Payment Receipt Model response.

Creating a Payment

Create an instance of the CardPayment Model:

//Prepare the Payment request
$paymentRequest = $judopay->getModel('Payment');

$paymentRequest->setAttributeValues(
    array(
        'judoId' => 'yourJudoId',
        'yourConsumerReference' => 'yourConsumerReference',
        'yourPaymentReference' => 'yourPaymentReference',
        'cardNumber' => '4976000000003436',
        'expiryDate' => '12/30',
        'cv2' => '452',
        'amount' => 1.01,
        'currency' => 'GBP',
        'cardAddress' => array(
            'address1' => '41 Luke St',
            'postCode' => 'EC2A 4DP',
            'town' => 'London',
            'countryCode' => 826
        ),
        // PrimaryAccountDetails only required for MCC6012 merchants
        'primaryAccountDetails' => array(
            'name' => 'Smith',
            'accountNumber' => '1234567',
            'dateOfBirth' => '2000-12-31',
            'postCode' => 'EC2A 4DP'
        ),
        // Following are for 3DS2 transactions
        'phoneCountryCode' => '44',
        'mobileNumber' => '7999123456',
        'emailAddress' => '[email protected]',
        'cardHolderName' => 'John Smith',
        'threeDSecure' => array(
            'authenticationSource'      => 'Browser',
            'challengeRequestIndicator' => 'ChallengeAsMandate',
            'methodNotificationUrl'     => 'https://yourMethodNotificationUrl',
            'challengeNotificationUrl'  => 'https://yourMethodNotificationUrl'
        )
    )
);

try {
    //Send the request to Judopay
    $response = $paymentRequest->create();

    if ($response['methodUrl'])
    {
        // Device details are required - POST md as threeDSMethodData to methodUrl
        $methodUrl = $response['methodUrl'];
        $md = $response['md'];
    }
    else if ($response['challengeUrl'])
    {
        // Challenge is required - POST creq to challengeUrl
        $challengeUrl = $response['challengeUrl'];
        $creq = $response['creq'];
    }
    else
    {
        $receiptId = $response['receiptId'];
        if ($response['result'] == 'Success')
        {
            $cardToken = $response['cardDetails']['cardToken'];
        }
    }
}
catch (\Judopay\Exception\ApiException $apiException)
{
    $errorResponse = "{\"error\":\"{$apiException->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Judopay\Exception\ValidationError $validationErrors)
{
    // Required attributes are missing from the request
    $errorResponse = "{\"error\":\"{$validationErrors->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Exception $e)
{
    $errorResponse = "{\"error\":\"".$e->getMessage()."\",\"result\":\"Error\"}";
}

*Mastercard Recommends: These fields are recommended rather than mandatory. Transactions will continue to be processed if not supplied. See, Mastercard Recommended 3D Secure 2 Fieldsdd.

Parameter	Description
judoId String Required	Unique ID supplied by Judopay. Specific to a merchant and/or location. Format: 100100100 Maximum length 9 characters. Do not include spaces or dashes.
amount Decimal Required	The amount to process. Format: Two decimal places For currencies using a different structure please contact Judopay for support.
currency String Required	The currency of the transaction. Any ISO 4217 alphabetic currency code: GBP USD EUR
yourConsumerReference String Required	Unique reference to anonymously identify your customer. Advisable to use GUIDs. Must be below 40 characters.
yourPaymentReference String Required	Your unique reference for this payment. Format: Maximum length 50 characters. This value should be unique in order to protect your customers against duplicate transactions. With a server side integration, if a payment reference is not supplied, the transaction will not be processed.
phoneCountryCode String Recommended *	The country code of the consumer's phone. Format: Maximum length 3 characters. Only numbers allowed. Do not include special characters or spaces. Must be set if mobileNumber is set. If not set, default = 44
mobileNumber String Recommended *	Consumer’s valid mobile number. Mastercard recommends providing at least one contact method for Mastercard 3D Secure authenticated transactions. Format: Maximum length 15 characters. Only numbers allowed. Do not include special characters or spaces. Must be set if phoneCountryCode is set.
cardHolderName String Recommended *	The card name of the consumer. If the cardHolderName field is displayed to the user in the payment form (isCardHolderNameVisible: true is set in the iFrame config), the value entered in the payment form will overwrite this value.
challengeRequestIndicator String Optional	Indicates the type of challenge request you wish to apply. Set this to one of the following strings: noPreference noChallenge No challenge required. challengePreferred A challenge is preferred for this transaction. challengeAsMandate Must challenge this transaction. This should not be included in the same configuration object as scaExemption.
scaExemption String Optional	To apply for an exemption from SCA, for a customer initiated transaction. Set this to one of the following strings: lowValue Transactions up to €45 do not require SCA, up to a maximum of five consecutive transactions, or a cumulative limit of €100. trustedBeneficiary Provides the cardholder the option to add the merchant to their trusted list. transactionRiskAnalysis Allows for certain remote transactions to be exempt from SCA, provided a robust risk analysis is performed. This should not be included in the same configuration object as challengeRequestIndicator.
initialRecurringPayment Boolean Optional	Indicates if this initial payment is part of a recurring payment.
billingAddress Object Optional	Card holder's billing address. Properties: address1 (Recommended)* address2 (optional) town state (only required if country is USA/Canada) Format: string ISO Alpha-2 Code (e.g. California = "CA") country Format: string See here for the list of valid ISO 3166-1 format country codes. postCode If the billingAddress is provided, the postcode is required.
emailAddress String Recommended *	Consumer’s valid email address. Mastercard recommends providing at least one contact method for Mastercard 3D Secure authenticated transactions.
primaryAccountDetails Object Optional	This is Mandatory for merchants who have an MCC code of 6012, 6051 and 7299. Properties: name This is the surname. accountNumber postCode dateOfBirth Format: YYYY-MM-DD
businessApplicationId String Optional	Required for AFT transactions. Identifies the type / purpose of the transaction. Format: Maximum 2 characters Values: AA – Account to account FD – Funds disbursement FT – Funds transfer PD – Payroll TU – Top up WT – Digital wallet Account Type Indicates the recipient's account type. Select from the following values: 00 - Other 01 - TRN & BAN 02 - IBAN 03 - Card (first6 & last4) 06 - BAN & BIC (SWIFT code) Note: If businessApplicationId is provided, aftRecipientInformation must also be provided.
aftRecipientInformation Object Optional	Required for AFT transactions. Contains recipient details. Note: If aftRecipientInformation is provided, businessApplicationId must also be provided. Values: firstName Recipient’s first name. addressLine1 Recipient’s address line 1. countryCode ISO 3166-1 alpha-2 country code. accountType Type of recipient account. accountId Unique identifier of the recipient account. For more information, see Account Funding Transactions.

If result.HasError = false, check the Payment Receipt Model response.

3D Secure 2 Transaction Flow

Authenticate a 3D Secure 2 transaction to allow for additional transaction checks required for compliance with Strong Customer Authentication (SCA). For more information on 3D Secure 2 and SCA, see Managing SCA Compliance.

Make sure your account has 3D Secure 2 API credentials enabled. Contact Customer Support to set this up.

The instance of the CardPaymentModel you created for Creating a Payment, just needs the following additional 3D Secure 2 parameters to be included:

// See Payment, PreAuth sections for details of how to trigger an initial transaction with required 3DS2 attributes

// If the response indicated device details check are required, POST the returned md (as an attribute named
// threeDSMethodData) to the returned methodUrl, and wait for a call from ACS to the methodNotificationUrl supplied on
// the initial transaction

// Once the call to the methodNotificationUrl has been received, resume the transaction flow to Judopay
$resumeRequest = $judopay->getModel('ResumeThreeDSecureTwo');
$resumeRequest->setAttributeValues(
    array(
        'receiptId' => $response['receiptId'], // receiptId of the original transaction
        'methodCompletion' => 'yes',
        'cv2' => '452',
        // primaryAccountDetails only required for MCC6012 merchants
        'primaryAccountDetails' => array(
            'name' => 'Smith',
            'accountNumber' => '1234567',
            'dateOfBirth' => '2000-12-31',
            'postCode' => 'EC2A 4DP'
        )
    )
);

try {
    //Send the request to Judopay
    $resumeResponse = $resumeRequest->update();

    if ($resumeResponse['challengeUrl'])
    {
        // Challenge is required - POST creq to challengeUrl
        $challengeUrl = $resumeResponse['challengeUrl'];
        $creq = $resumeResponse['creq'];
    }
    else
    {
        // Transaction has been processed
        $receiptId = $response['receiptId'];
        $status = $response['result'];
    }
}
catch (\Judopay\Exception\ApiException $resumeApiException)
{
    $resumeErrorResponse = "{\"error\":\"{$resumeApiException->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Judopay\Exception\ValidationError $resumeValidationErrors)
{
    // Required attributes are missing from the request
    $resumeErrorResponse = "{\"error\":\"{$resumeValidationErrors->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Exception $resumeException)
{
    $resumeErrorResponse = "{\"error\":\"".$resumeException->getMessage()."\",\"result\":\"Error\"}";
}


// If either the initial transaction response, or the resume response, indicated a challenge is required, POST the
// returned creq to the returned challengeUrl, and wait for a call from ACS to the challengeNotificationUrl supplied on
// the initial transaction

// Once the call to the challengeNotificationUrl has been received, complete the transaction flow to Judopay

$completeRequest = $judopay>getModel('CompleteThreeDSecureTwo');
$completeRequest->setAttributeValues(
    array(
        'receiptId' => $response['receiptId'], // receiptId of the original transaction
        'cv2' => '452',
        // primaryAccountDetails only required for MCC6012 merchants
        'primaryAccountDetails' => array(
            'name' => 'Smith',
            'accountNumber' => '1234567',
            'dateOfBirth' => '2000-12-31',
            'postCode' => 'EC2A 4DP'
        )
    )
);

try {
    //Send the request to Judopay
    $completeResponse = $completeRequest->update();

    // Transaction has been processed
    $receiptId = $completeResponse['receiptId'];
    $status = $completeResponse['result'];
}
catch (\Judopay\Exception\ApiException $completeApiException)
{
    $completeErrorResponse = "{\"error\":\"{$completeApiException->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Judopay\Exception\ValidationError $completeValidationErrors)
{
    // Required attributes are missing from the request
    $completeErrorResponse = "{\"error\":\"{$completeValidationErrors->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Exception $completeException)
{
    $completeErrorResponse = "{\"error\":\"".$completeException->getMessage()."\",\"result\":\"Error\"}";
}

Parameter	Description
cardHolderName String Required	The full name of the card holder. When testing in the sandbox environment, it is the cardHolderName that is used to determine the test card for 3D Secure 2 authentication. Format: Alphanumeric Length: 2-45 characters Allowed special characters: [.-'␣]
mobileNumber String Optional	Consumer’s valid UK mobile number.
phoneCountryCode String Optional	The country code of the consumer's phone.
emailAddress String Optional	Consumer’s valid email address. It is recommended but not required for 3D Secure 2 authentication.
threeDSecure Object Required	For any 3D Secure 2 requests. authenticationSource indicates the type of channel used to initiate the transaction. Format: enum Values: Unknown Browser Merchant_Initiated Mobile_Sdk challengeRequestIndicator indicates the type of 3D Secure 2 challenge request. Format: enum Values: noPreference noChallenge No challenge required. challengePreferred A challenge is preferred for this transaction. challengeAsMandate Must challenge this transaction. scaExemption The customer initiated transaction type, that is exempt from SCA. Format: enum Values: LowValue Transactions up to €45 do not require SCA, up to a maximum of five consecutive transactions, or a cumulative limit of €100. TrustedBeneficiary Provides the cardholder the option to add the merchant to their trusted list. TransactionRiskAnalysis Allows for certain remote transactions to be exempt from SCA, provided a robust risk analysis is performed. Make sure when testing: methodNotificationUrl and challengeNotificationUrl you use a real URL for the values. If you use a localhost URL, it will not work. methodNotificationUrl The URL that will receive the method completion message, confirming the Issuer has completed the device details check. URL Length: 1-256 characters challengeNotificationUrl The URL that will receive the outcome of the challenge request to the consumer. URL Length: 1-256 characters

If no additional transaction checks are required, you will receive the usual paymentReceipt response.

If additional transaction checks are required, you will receive the challenge response.

Parameter	Description
cv2 String Required	The 3 or 4 digit number on the back of a credit card. Also known as the card verification value (CVV) or security code.
primaryAccountDetails Object Optional	For MCC 6012, 6051 and 7299 merchants, this object needs to be added to the request. Without this, 3D Secure 2 transactions will not be successful. Values: name accountNumber dateOfBirth postCode
methodCompletion enum Required	Indicates if the 3DS ACS method to collect the device details was completed successfully. Values: Unknown Yes No Unavailable

Parameter	Description
cv2 String Required	The 3 or 4 digit number on the back of a credit card. Also known as the card verification value (CVV) or security code.
primaryAccountDetails Object Optional	For MCC 6012, 6051 and 7299 merchants, this object needs to be added to the request. Without this, 3D Secure 2 transactions will not be successful. Values: name accountNumber dateOfBirth postCode

Check the Payment Receipt Model response.

Payment Receipt

Parameter	Description
receiptId String	Judopay's reference for the transaction. Used to process refunds or collections.
yourPaymentReference String	Your unique reference for this payment. This value should be unique in order to protect your customers against duplicate transactions. With a server side integration, if a payment reference is not supplied, the transaction will not be processed.
type String	Type of transaction: Payment Refund PreAuth Collection This transaction type is available from API Version 6.4.1 onwards.
acquirerTransactionID String	The unique ID of a transaction set by the acquirer.
createdAt Date	An ISO8601 formatted date and time. Includes time zone offset.
result String	Result of transaction.
message String	Message detailing the outcome.
externalBankResponseCode String	Reason code provided by the bank for declined transactions.
judoId String	Unique ID supplied by Judopay. Specific to a merchant and/or location.
merchantName String	Merchant's trading name.
appearsOnStatementAs String	How the Merchant appears on the consumer's statement.
originalAmount Decimal	Amount of transaction. This field will not be included for Refund and PreAuth transaction types.
amountCollected Decimal	Amount collected. This field will be included for the PreAuth transaction type.
netAmount Decimal	The remaining balance of the transaction after a refund. You cannot refund more than the original transaction amount.
amount Decimal	The amount to process. Format: Two decimal places For currencies using a different structure please contact Judopay for support.
currency String	The currency of the transaction. Any ISO 4217 alphabetic currency code: GBP USD EUR
cardDetails Object	Information on the card used in this transaction: cardLastFour endDate cardToken cardType startDate cardScheme cardFunding cardCategory cardCountry bank
consumer Object	Details of the consumer. Used for repeat transactions. Details: yourConsumerReference
device Object	Specific device details to identify a consumer: identifier
riskScore Integer	Consumer's risk score.
yourPaymentMetaData String	Additional information associated with a transaction to help reconcile.
threeDSecure Object	For any 3DSecure requests. Includes the result of the authentication process: attempted result This block will not be returned for voids / refunds or collections responses.
challengeRequestIndicator String	Indicates the type of challenge request you wish to apply. Values: noPreference noChallenge No challenge required. challengePreferred A challenge is preferred for this transaction. challengeAsMandate Must challenge this transaction.
scaExemption String	To apply for an exemption from SCA, for a customer initiated transaction. Values: lowValue Transactions up to €45 do not require SCA, up to a maximum of five consecutive transactions, or a cumulative limit of €100. secureCorporate Request exemption for payments made using a corporate card. trustedBeneficiary Provides the cardholder the option to add the merchant to their trusted list. transactionRiskAnalysis Allows for certain remote transactions to be exempt from SCA, provided a robust risk analysis is performed.
risks Object	Risk checks on: postCodeCheck cv2Check merchantSuggestion merchantStatistics
recurring Boolean	Is the transaction a recurring transaction? If false, the field will not be returned.
recurringPaymentType enum	Type of recurring payment. Values: RECURRING Scheduled regular payment. MIT (Merchant Initiated Transaction) Unscheduled regular payment. recurringPaymentType is required if recurringPayment = true.

Creating a Refund

You can process a full or partial refund.

Ensure the Refund Payments permission is enabled on your API token.

Create a refund request:

//Prepare the Refund request
$refundRequest = $judopay->getModel('Refund');

$refundRequest->setAttributeValues(
    array(
        'receiptId' => 'yourPaymentReceiptId',
        'yourPaymentReference' => 'yourRefundReference',
        'amount' => 1.01 // Optional, if not specified full payment amount will be refunded
    )
);

try {
    //Send the request to Judopay
    $response = $refundRequest->create();

    $receiptId = $response['receiptId'];
    $status = $response['result'];
}
catch (\Judopay\Exception\ApiException $apiException)
{
    $errorResponse = "{\"error\":\"{$apiException->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Judopay\Exception\ValidationError $validationErrors)
{
    // Required attributes are missing from the request
    $errorResponse = "{\"error\":\"{$validationErrors->getSummary()}\",\"result\":\"Error\"}";
}
catch (\Exception $e)
{
    $errorResponse = "{\"error\":\"".$e->getMessage()."\",\"result\":\"Error\"}";
}

Parameter	Description
receiptId String Required	Judopay's reference for the transaction that is to be refunded.
amount Decimal Required	The amount to refund. Format: Two decimal places For currencies using a different structure please contact Judopay for support.
currency String Required	If specified, the currency must match the original transaction. If not specified, the currency of the original transaction will be used. Any ISO 4217 alphabetic currency code: GBP USD EUR
yourPaymentReference String Required	Your unique reference for this refund. Format: Maximum length 50 characters. This is not the yourPaymentReference of the original transaction.

Check the Payment Receipt Model response.

Going Live

Test all your required transaction types in the live environment before deploying your app.

You will need to have tested your app in the sandbox environment before going live.

Activate your Account. To process live payments, ensure you have a live account.

Complete the activation form for us to make the necessary changes to your account.

We will contact you as soon as you are live.

Point to the Live Environment.

Replace your sandbox API Token and Secret for the live API Token and Secret

Find these in Judopay Portal > Your apps > {app name} > Live Tokens

//In the Judopay object change the production environment setting from false to true: 'useProduction' => true

$judopay = new \Judopay(
array(
    'apiToken' => 'your-token,
    'apiSecret' => 'your-secret',
    'judoId' => 'your-judo-id',

    //Set to true on production, defaults to false which is the sandbox

    'useProduction' => true    )
);

Test Live Payments.

Ensure the SDK is properly configured for the live environment.

Use real debit or credit cards.

Test cards provided will not work in live.

We recommend to perform pre-authorizations followed by a void, or regular payments followed by a refund.

Send a refund through the Judopay Portal > History.

Test all payment scenarios and security features to verify the expected behaviour.

WooCommerce Plugin

We are no longer supporting the WooCommerce plugin. This is now deprecated.

This version of the Judopay WooCommerce plugin uses Judopay's Web Payments solution, to take online card payments as well as Apple Pay™ and Google Pay™. The plugin supports 3D Secure 2.0 transactions, if the issuing bank requires.

Prerequisites

Below are the versions of systems this plugin has been developed and tested on. Although other versions may work, they are not guaranteed:

WordPress: Version 6.8.1

WooCommerce: Version 9.9.3

PHP: Version 8.1.2

Contact Developer Support for the WooCommerce plugin file.

If you are not using these versions the lower versions may work but are not guaranteed. Judopay will not be making any modifications to accommodate lesser working versions. Equally, any new versions that may cause functionality to fail will be looked at on a best-case scenario.

WordPress Configuration Requirement

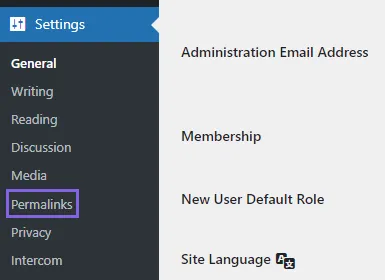

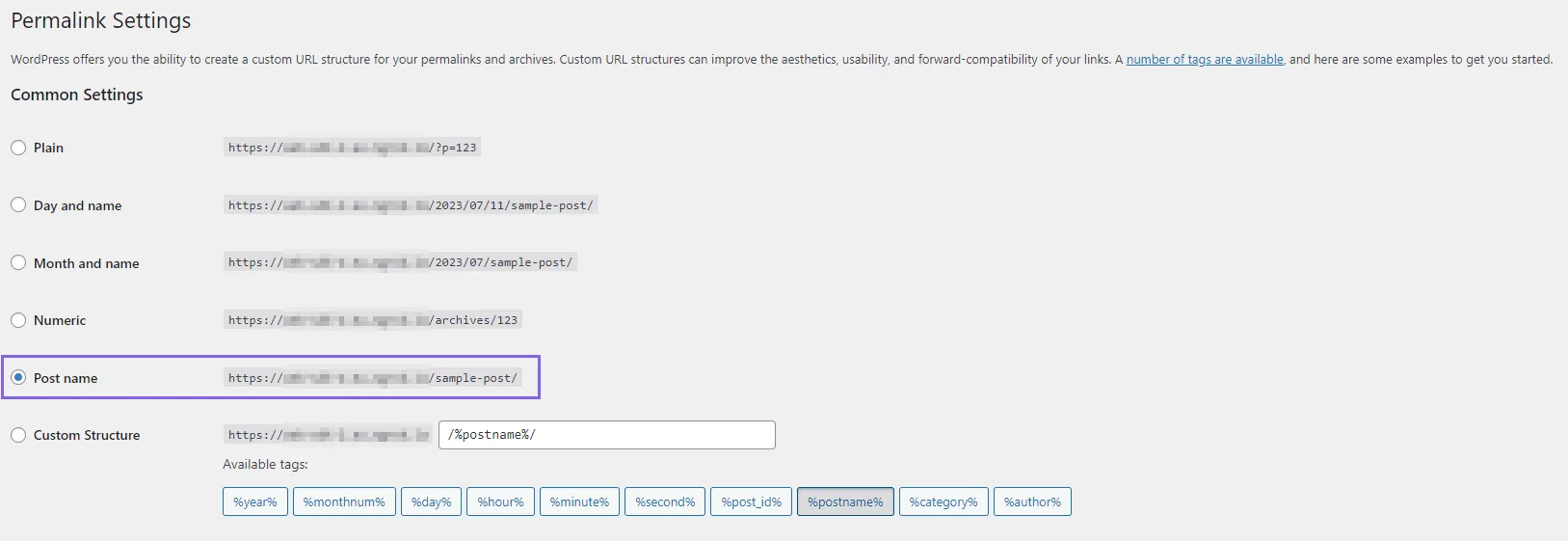

It is important that the Permalink configuration within WordPress is set to Post name.

For example: https://www.yourdomain.com/wordpress/sample-post/

Ensure you are careful when changing this, if any other plugins require a different configuration this may cause issues with other plugins.

If you are unsure then do not use this plugin.

Installation

Ensure you have WooCommerce installed and working as desired.

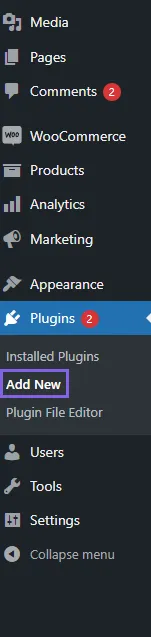

Go to the WordPress Plugins section Select Add New

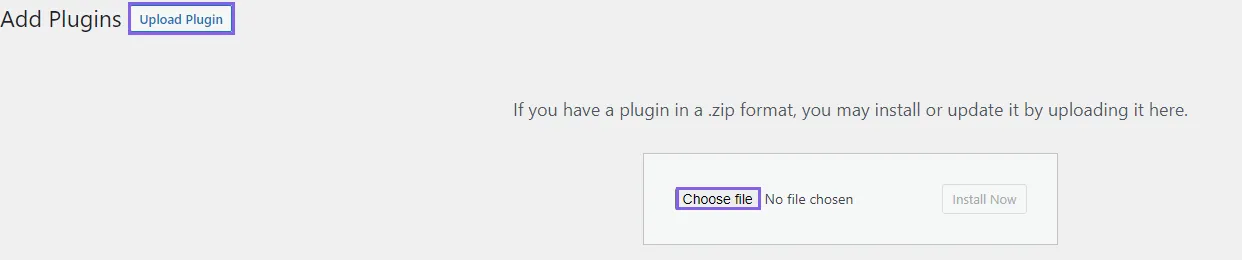

Select Upload Plugin Click Choose File

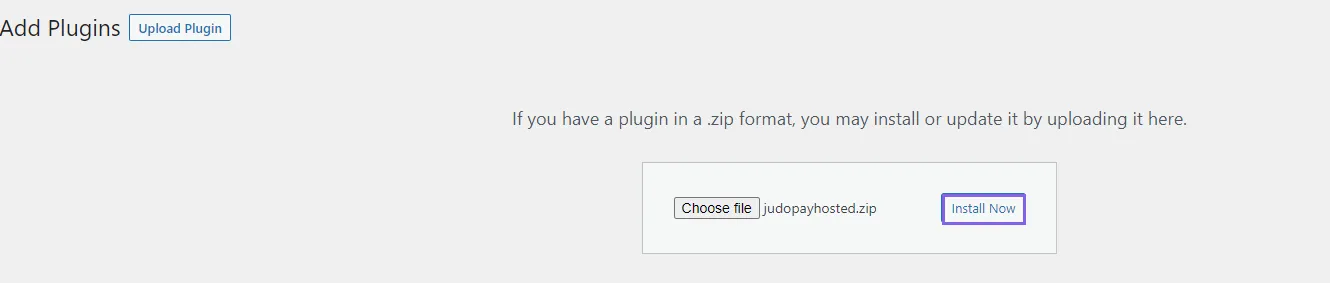

Locate the judopayhosted.zip file, then click Install Now

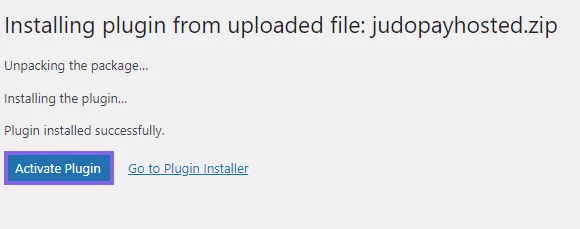

Click Activate Plugin to activate the plugin

The installation is now complete.

Configure WooCommerce

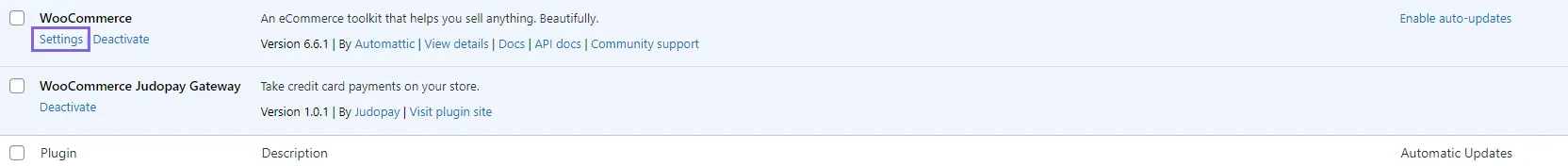

In plugins for WooCommerce Click Settings

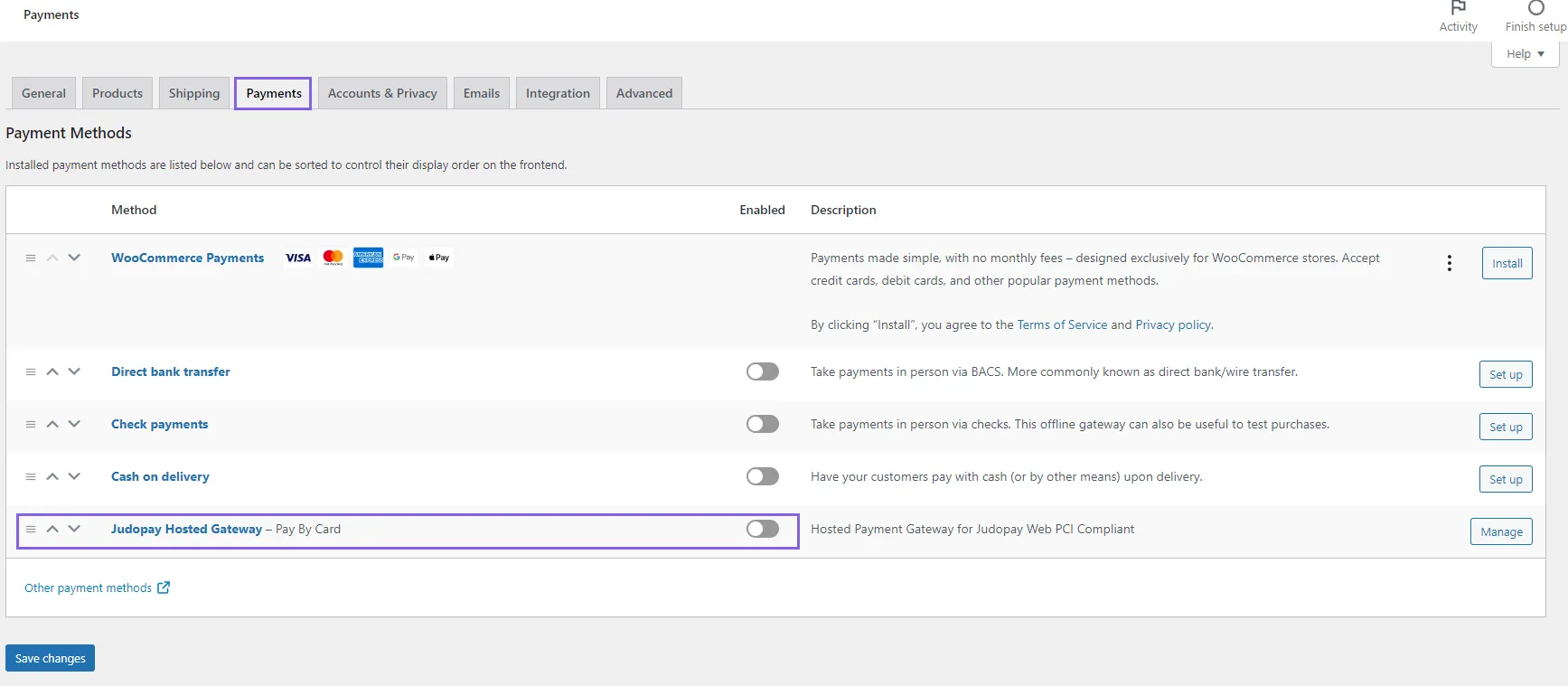

Click on the Payments tab

Toggle the Enabled button to enable Judopay Hosted Gateway.

To configure your Judopay Plugin Details, click Manage

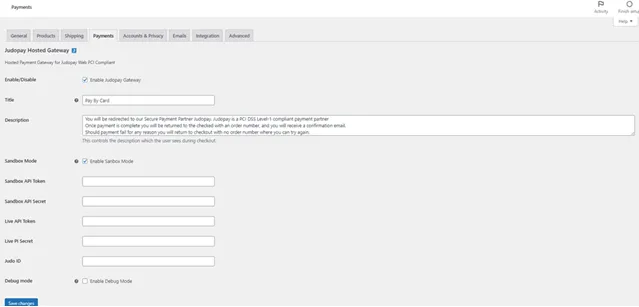

Configure the Judopay Plugin

Sandbox mode is enabled by default and will use the Sandbox Account.

When you are ready to go live and have a live account, de-select Enable Sandbox Mode to receive live payments.

Contact your sales adviser ([email protected]) in order to set up a live transacting account.

Debug Mode will log to the WordPress log file if required.

This will not log card details in any way.

apiToken: This your unique API Token from your Judopay Account.

apiSecret: This your unique API Secret from your Judopay Account.

judoId: This is your unique JudoId.

For assistance with your Judopay Account, contact [email protected] Sign up for a free Sandbox Account here.

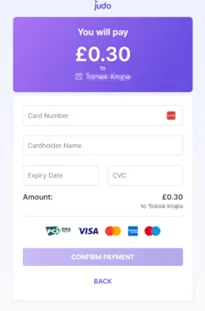

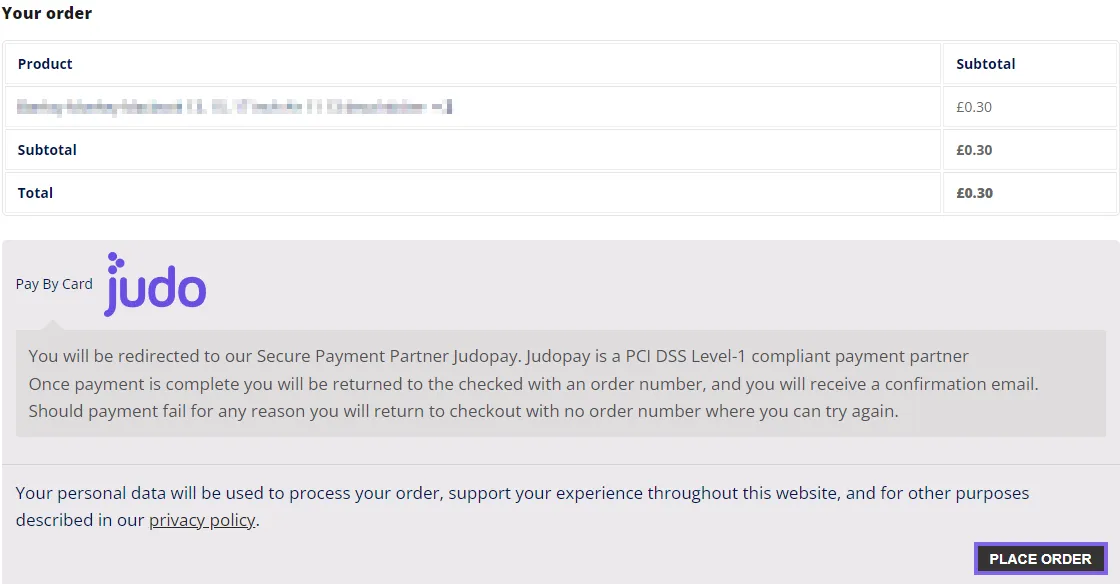

Checkout View

Success and Failure URLs

Once the plugin is set up, login to portal.judopay.com and set up your success and failure URLs.

The API token used by the plugin needs to use the following as its success / failure URL: https://www.yoursite.com/wc-api/judopay_webhook

Where yoursite.com is your WordPress site.

This is the return URL for Judopay to call the WooCommerce site and update the transaction status.

Register Card

We are no longer supporting or updating Register Card as it is an outdated method to verify cards, and is now deprecated. Check Card is the recommended card verification method required by the Card Schemes.

Use registerCard to save the consumer's card details in Judopay's card vault.

When making Token Payments, you can obtain the card token from the Register Card response.

Create an instance of the RegisterCard Model:

//Create an instance of the RegisterCard Model
var registerCardRequest = new RegisterCardModel
{
    JudoId = "yourJudoId",
    YourConsumerReference = "yourConsumerReference",
    YourPaymentReference = "yourPaymentReference",
    CardNumber = "4976000000003436",
    ExpiryDate = "12/25",
    CV2 = "452",
    CardAddress = new CardAddressModel
    {
        Address1 = "41 Luke St",
        PostCode = "EC2A 4DP",
        Town = "London",
        CountryCode = 826
    },
    // PrimaryAccountDetails only required for MCC6012 merchants
    PrimaryAccountDetails = new PrimaryAccountDetailsModel
    {
        Name = "Smith",
        AccountNumber = "1234567",
        DateOfBirth = "2000-12-31",
        PostCode = "EC2A 4DP"
    },
    // Following are for 3DS2 transactions
    PhoneCountryCode = "44",
    MobileNumber = "7999123456",
    EmailAddress = "[email protected]",
    CardHolderName = "John Smith",
    ThreeDSecure = new ThreeDSecureTwoModel
    {
        AuthenticationSource = ThreeDSecureTwoAuthenticationSource.Browser,
        ChallengeRequestIndicator = ThreeDSecureTwoChallengeRequestIndicator.ChallengeAsMandate,
        MethodNotificationUrl = "https://yourMethodNotificationUrl",
        ChallengeNotificationUrl = "https://yourChallengeNotificationUrl"
    }
};

//Send the request to Judopay
var response = await client.RegisterCards.Create(registerCardRequest);

if (response.HasError)
{
    if (response.Error.Code == (int)HttpStatusCode.Forbidden)
    {
        // Failed to authenticate - check your credentials
    }
    else if (response.Error.ModelErrors != null)
    {
        // Validation failed on the request, check each list entry for details
    }
    else
    {
        // Refer to https://docs.judopay.com/Content/Developer%20Tools/Codes.htm#Errors
        var errorCode = response.Error.Code;
    }
}
else if (response.Response is PaymentRequiresThreeDSecureTwoModel threeDSecureTwoResponseModel)
{
    if (threeDSecureTwoResponseModel.MethodUrl != null)
    {
        // Device details are required - POST md as threeDSMethodData to methodUrl
        var methodUrl = threeDSecureTwoResponseModel.MethodUrl;
        var md = threeDSecureTwoResponseModel.Md;
    }
    else if (threeDSecureTwoResponseModel.ChallengeUrl != null)
    {
        // Challenge is required - POST creq to challengeUrl
        var challengeUrl = threeDSecureTwoResponseModel.ChallengeUrl;
        var creq = threeDSecureTwoResponseModel.CReq;
    }
}
else if (response.Response is PaymentReceiptModel receipt)
{
    var receiptId = receipt.ReceiptId;
    var status = receipt.Result;
    if (receipt.Result == "Success")
    {
        var cardToken = receipt.CardDetails.CardToken;
    }
}

You do not need to set an amount. This is automatically set by Judopay's Transaction API in order to register the card.

The receipt response will show the payment: Type = PreAuth.

Parameter	Description
yourConsumerReference String Required	Unique reference to anonymously identify your customer. Advisable to use GUIDs. Must be below 40 characters.
yourPaymentReference String Required	Judopay's Server SDK sets this value automatically. If you insert a value, the SDK will change it. This value is unique in order to protect your customers against duplicate transactions.
yourPaymentMetaData IDictionary Optional	Additional information associated with a transaction to help reconcile.
judoId String Required	Unique ID supplied by Judopay. Specific to a merchant and/or location. Format: 100100100 Maximum length 9 characters. Do not include spaces or dashes.
cardNumber String Required	Submitted without whitespace or non-numeric characters.
currency String Optional	The currency of the transaction. Any ISO 4217 alphabetic currency code: GBP USD EUR
cv2 String Required	The 3 or 4 digit number on the back of a credit card. Also known as the card verification value (CVV) or security code.
startDate String Optional	For Maestro cards: Format: MM/YY
expiryDate String Optional	The expiry date of the card. Format: MM/YY
issueNumber Integer Optional	For Maestro cards: A number between 1 and 2 digits (from 0 to 99). Located on the front of the card.
initialRecurringPayment Boolean Optional	Indicates if this initial payment is part of a recurring payment.
recurringPayment Boolean Optional	Indicates if this is a recurring payment.
relatedReceiptId String Optional	The receiptId returned from the first subscription payment. Adding the relatedReceiptId references the subsequent recurring transactions to the original transaction.
threeDSecure Object Required	For any 3D Secure 2 requests. authenticationSource indicates the type of channel used to initiate the transaction. Format: enum Values: Unknown Browser Merchant_Initiated Mobile_Sdk challengeRequestIndicator Indicates the type of 3D Secure 2 challenge request. Format: enum Values: noPreference noChallenge No challenge required. challengePreferred A challenge is preferred for this transaction. challengeAsMandate Must challenge this transaction. scaExemption The customer initiated transaction type, that is exempt from SCA. Format: enum Values: LowValue Transactions up to €45 do not require SCA, up to a maximum of five consecutive transactions, or a cumulative limit of €100. SecureCorporate Request exemption for payments made using a corporate card. TrustedBeneficiary Provides the cardholder the option to add the merchant to their trusted list. TransactionRiskAnalysis Allows for certain remote transactions to be exempt from SCA, provided a robust risk analysis is performed.

If result.HasError = false, check the Payment Receipt Model response.

Testing RegisterCard

These scenarios do not include 3D Secure 2 authentication testing. See Testing 3D Secure 2 Flows for 3D Secure 2 authentication testing for your app.

RegisterCard Scenarios (Positive Flow)

RegisterCard conducts a pre-authorisation by reserving a pre-configured amount in the customer's account.

The pre-configured amount is set during your on-boarding process (the default amount is 1.01).

RegisterCard will tokenise the card information into an encrypted string, which can be used for future transactions.

The POST /transactions/voids endpoint can be used to cancel this pre-authorisation so it does not appear in the customer's statement.

Important to Consider

RegisterCard tests involve verification of:

The card:

cardNumber

cardExpiryDate

The account:

Is not blocked or blacklisted

Exists

Tokenises the card number into an encrypted string.

Store yourConsumerReference and cardToken and supply these in future card payment, preAuth, or Merchant Initiated Transaction requests.

A successful registerCard request verifies the card with the issuer and can be authenticated using 3D Secure 2, providing you with the confidence the card is valid to make future payments.

Suggested Test Scenario	Expected Outcome	Tip
Process a registerCard request with the CV2/CVV security code included in the request. This will check the CV2/CVV is valid for that card.	200 Successful	The CV2 field check will be performed during the transaction process.
Process a registerCard request without the CV2/CVV security code included in the request.	Declined	The CV2 field check will not be performed during the transaction process.
Process a registerCard request with the billing address information (cardAddress block) included in the request. This will validate the billing address is registered to that card.	200 Successful	Ensure the cardAddress block has the correct fields: address1 address2 town postCode Required countryCode See here for the list of valid ISO 3166-1 format country codes. Example cardAddress block: "cardAddress": { "address1": "CardHolder House", "address2": "1 CardHolder Street", "address3": "CardHolder Area", "town": "CardHolder Town", "postCode": "AB1 2CD", "countryCode": 826, "state": "FL", }, To validate the card is registered to the correct post code, ensure the following permission on your sandbox API Credentials is enabled: Enforce AVS checks. The default setting = disabled.
Process a registerCard request without the billing address information (cardAddress block) included in the request.	200 Successful

For more information on API credentials and permissions, see Permissions.

Test Card Data

To simulate a successful registerCard request use the Test Cards.

Register Card Request Parameters

Sandbox endpoint: https://api-sandbox.judopay.com/transactions/registercard

HTTP Method: POST

Header Parameters:

Depending on how you integrate with Judopay, you can authenticate requests by:

/paymentsession, or

TokenSecretAuth

The token and secret pair

For more information, see Authentication Methods.

API-Version:	6.26 For the latest version of the Judopay Transaction API, see Latest Version.
Content-Type:	application/json
Accept:	application/json
Authorization Method: TokenSecretAuth	In the Authorization Header: Supply: Basic {authstring} Example: BasicTXpFdPdRSzWmSGk4djhxeTpjBTS4YjQ5OTdkZmO7CTk1YTE0OWEyMDg1MmY3YWYyZWEyZTcwYmQyZGY3O Replace {authstring} with base64 encoding of: API Token (username) Colon API Secret (password) Example: MzPdkQK1mGi8v3ky:y158n4732dfc7595a149a20381f7af2ea2e70gr6df794b8rnwc019cc5f799kk3
Authorization Method: PaymentSessionAuthToken	For Payment Session authentication In the Api-Token header: Supply the token used to authenticate the call to generate a payment session The Payment-Session header value must also be supplied.
Authorization Method: PaymentSessionAuthReference	For Payment Session authentication In the Payment-Session header: Supply the reference returned in the create payment session response The Api-Token header value must also be supplied.

Body Parameters:

Configuration Property Descriptions

Parameter	Description
judoId String Optional	Unique ID supplied by Judopay. Specific to a merchant and/or location. Format: 100100100 Maximum length 9 characters. Do not include spaces or dashes.
cardNumber String Required	The unique number printed on the card (13 to 19 digits depending on card type). Submitted without whitespace or non-numeric characters.
expiryDate String Required	The expiry date of the card. Format: MM/YY
cv2 String Optional	The 3 or 4 digit number on the back of the card. Also known as the card verification value (CVV) or security code.
yourConsumerReference String Required	Unique reference to anonymously identify your customer. Advisable to use GUIDs. Must be below 40 characters.
yourPaymentReference String Optional	Your unique reference for this payment. Format: Maximum length 50 characters. This value should be unique in order to protect your customers against duplicate transactions. With a server side integration, if a payment reference is not supplied, the transaction will not be processed.
cardHolderName String Optional	The full name of the card holder.

{
    "yourConsumerReference": "[email protected]",
    "yourPaymentReference": "5312b7b1-e89c-4155-971a-6e6fa3fb1e26",
    "judoId": "100873697",
    "cardNumber": "4976000000003436",
    "expiryDate": "12/24",
    "cv2": "452",
    "cardHolderName": "Lonnie Rath V"
}

RegisterCard Scenarios (Negative Flow)

Declines can occur for various reasons, it can be impossible to simulate all the negative flows in a sandbox environment.

Important to Consider

How your app handles negative flows

Your customer's experience should a negative flow occur:

Logic to communicate error messages

Customise how your app responds

How to maintain application consistency

Follow our suggested guidelines to simulate negative scenarios, to test your app’s error handling:

Suggested Negative Test Scenario	Expected Error Code	Error Description
Attempt to perform a registerCard request using an invalid card expiry date.	161	Sorry, but the card expiry date must be in the future.
Attempt to perform a registerCard request using an invalid card number.	196	Unable to process transaction as the card number is invalid. Please try again with a different card.
Attempt to perform a registerCard request with an invalid CV2.	74	The CV2 entered is invalid.
Attempt to perform a registerCard request with a missing CV2. The sandbox token has cv2 enabled, the registerCard request has an empty cv2 field.		Sorry, you've not supplied the 3-digit card security code. Please check your details and try again. This is a model error.
Simulate a decline using the following test card details:
Attempt to perform a registerCard decline using the following: cardNumber: 4221690000004963 cv2: 452 expiryDate: 12/24	Declined	Card declined.

Where the codes remain fixed, the descriptions may change. You should not build any error handling logic based on these descriptions.

Integrating iDEAL

The iDEAL alternative payment method for a Web SDK and Mobile SDK integration, has been decommissioned.

Integrating iDEAL for React Native

To add iDEAL support to your Payments Widget:

Set the currency code to EUR (Euro)

Set the judoId

Include iDEAL as a payment method

An example of a valid iDEAL configuration:

const configuration: JudoConfiguration = { ... judoId: 'myJudoId', paymentMethods: JudoPaymentMethod.iDEAL ... } const response = await judo.invokePaymentMethodScreen( mode, configuration, )

Once the currency and judoId are set, iDEAL will be available as a payment method in the Payments Widget.

Integrating iDEAL for Android

To add iDEAL support to your Payments Widget, set:

The currency code to EUR (Euro)

The JudoId

The judoIdparameter can be set by calling setJudoIdon the Judo builder. An example of a valid iDEAL configuration:

val judo = Judo.Builder(PaymentWidgetType.PAYMENT_METHODS) ... .setJudoId("my-judo-id") .setCurrency("EUR") .build()

Once the currency and judoId are set, iDEAL will be available as a payment method in the Payments Widget.

Integrating iDEAL for iOS

To add iDEAL support to your Payments Widget, set:

Currency code to EUR (Euro)

The judoId parameter in the JPConfiguration instance:

An example of a valid iDEAL configuration: configuration.judoId = @"my-judo-id";

Once the currency and judoId are set, iDEAL will be available as a payment method in the Payments Widget.

Integrating iDEAL via Web SDK

Ideal is an online payment method that enables consumers to pay through their own bank.

Prerequisites

Make sure you have implemented the following prerequisites from the Web SDK integration guide:

Create a paymentSession

Add the Payment Form to your Website

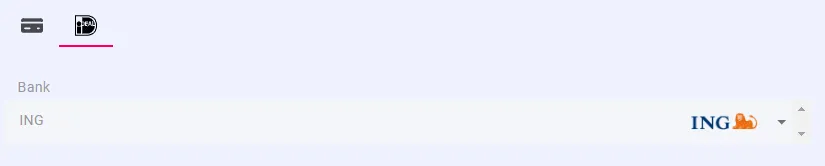

Step One: Add the iDEAL payment tab

The fields referred to in this step are part of the iFrame configuration object supplied in Step Two in the Prerequisites: createCardDetails() Call: judo.createCardDetails('payment-iFrame', iFrameConfiguration)

To add the iDEAL payment tab:

Ensure the array set for the enabledPaymentMethods field includes ‘IDEAL’.

For example: enabledPaymentMethods: ['CARD', 'IDEAL']

Transaction Timeout

You can alter the timeout for iDEAL transactions by setting the field idealPollingTimeout. Set it as the number of ms you want the timeout to be. For example: idealPollingTimeout: 40000 would set the transaction timeout to 40000ms (40 seconds).

If the field is not provided, the default value is 60000ms

Step Two: Making an iDEAL Transaction

Define the idealConfiguration object for the payment

Ensure the details used when creating the paymentSession match the values set in the following configuration:

const idealConfiguration = {
    judoId: "yourJudoId",
    merchantPaymentReference: "yourPaymentReference",
    merchantConsumerReference: "yourConsumerReference",
    currency: "EUR",
    amount: 10,
    country: "NL",
    accountHolderName: "Account Holder Name",
    paymentMethod: "IDEAL"
}

To successfully process an iDEAL transaction, the currency must be ‘EUR’ (Euros).

Parameter	Description
judoId String Required	Unique ID supplied by Judopay. Specific to a merchant and/or location. Format: 100100100 Maximum length 9 characters. Do not include spaces or dashes.
amount Decimal Required	The amount to process. Format: Two decimal places For currencies using a different structure please contact Judopay for support.
currency String Required	The currency of the transaction. The ISO 4217 alphabetic currency code: For iDEAL payments this must be EUR.
yourConsumerReference String Required	Unique reference to anonymously identify your customer. Advisable to use GUIDs. Must be below 40 characters.
yourPaymentReference String Required	Your unique reference for this payment. Format: Maximum length 50 characters. This value should be unique in order to protect your customers against duplicate transactions. With a server side integration, if a payment reference is not supplied, the transaction will not be processed.
paymentMethod String Required	The payment method being used. Ensure this is set to IDEAL.
accountHolderName String Required	The name of the account holder related to this transaction.
country String Required	The 2-letter ISO country code from which the consumer will be paying. This must be set to NL for iDEAL payments.

2. Call getPaymentMethod() in your function that handles the payment button click for card payments. (If this is not already set up, add a function to handle this). getPaymentMethod() returns information on which tab is open in the iFrame. Call the appropriate Web SDK method to trigger the correct transaction.

For example:

If the card form tab is open, getPaymentMethod will return “CARD”.

For a payment, call: invokePayment()

For a preAuth, call: invokePreauth()

If the iDEAL tab is open, getPaymentMethod will return “IDEAL”.

Call: invokePaymentWithIDEAL()

 function handlePaymentButtonClick() {
    const paymentMethod = judo.getPaymentMethod()

    if(paymentMethod === 'CARD') {
          judo.invokePayment(paymentSession, paymentConfiguration)
          .then(handleSuccess)
          .catch(handleError)
    }
    else if(paymentMethod === 'IDEAL') {
          judo.invokePaymentWithIDEAL(paymentSession, idealConfiguration)
          .then(handleSuccess)
          .catch(handleError)
    }
}

If you do not already have an event handler on your payment button to invoke the handlePaymentButtonClick():

Add the onclick attribute to your payment button: <button id="submit-payment-button" onclick="handlePaymentButtonClick()"> Pay Now </button>

Make sure you have set :id ="submit-payment-button". This is required to perform form validation, where the Pay button will be greyed out until all the information has been entered.

Step Three: Handle the Response

All the Judopay Web SDK transaction methods return a promise. Once the authorisation is complete, the promise will be either fulfilled or rejected.

Fulfilled

You will receive a JSON object response (a Judopay receipt object).
- For more information and schema on the JSON object, see API Transaction Response.
Depending on the result the consumer should be redirected to the appropriate outcome page.
- For example, if the result = SUCCESS redirect the consumer to the Success Page.
This page should display the necessary transaction information (found in the Judopay receipt object).

Rejected

You will receive an error object
- For more information on error responses returned, see Web SDK Error Responses.
The consumer should be redirected to an Error Page.

const onFulfillment = (receiptObject) => {
  const { result } = receiptObject
  //redirect to appropriate page depending on the result (success/failure/declined page)
}

const onRejection = (error) => {
  //redirect to error page and handle error
}

For more information on the response codes, see Codes.

Integrating Klarna

The Klarna alternative payment method for a Web SDK integration, has been decommissioned.

Integrating Klarna via Web SDK

Klarna is a payment method that allows consumers to pay for items in instalments, or at a later date. This does not impact the merchant as they will receive all of the funds upfront as Klarna pays the merchant in full, taking on the debt themselves.

Prerequisites

Make sure you are using Web SDK Version 0.0.18 (or higher).

Make sure you have implemented the following prerequisites from the Web SDK integration guide:

Create a paymentSession

Add the Payment Form to your Website

The payment form iFrame must be loaded onto the page in order for payments to work. However displaying the form to the consumer is not required for this transaction type.

To hide the payment form iFrame, use: <div id="payment-iframe" style="position:absolute;width:0;height:0;border:0;"></div>

To automatically receive non-breaking changes, you can pin to the minor version (0.0) rather than the current patch version (0.1.0).

Step One: Display the Klarna Button

Add the Klarna button to your web page:

<body>

  <div id="klarna-button-container" ></div>

<script>

  const klarnaButton = judo.getKlarnaButton({
    	backgroundColor: '#ffb3c7',
    	borderRadius: 4,
    	color: '#171717',
    	height: 36,
    	width: 280,
    	label: 'Pay now'
  })

  const container = document.getElementById("klarna-button-container")
  container.append(klarnaButton)

</script>
</body>

Klarna Button Style

Parameter	Value
backgroundColor	#171717 #ffffff #ffb3c7
color	#ffffff #171717
label	Pay now Pay later Slice it
width	number
height	number
borderRadius	number

Step Two: Handle the Klarna Button

Make sure the following parameters are the same values as those entered in Create a paymentSession, otherwise the transaction will fail:

merchantPaymentReference

merchantConsumerReference

JudoID

Currency

Amount

This is used to cross reference the validity of the transaction.

Your backend server should store the paymentSession response reference returned by Judopay's API. Use this reference from the response to populate yourPaymentSession.

Make sure you replace the klarnaConfiguration object values with your own.

<script>

klarnaButton.onclick = handleKlarnaButtonClick

function handleKlarnaButtonClick() {

    const klarnaConfiguration = {
        judoId: "yourJudoId",
        currency: "GBP",
        amount: 10,
        country: "GB",
        accountHolderName: "Account Holder Name",
        merchantPaymentReference: "yourPaymentReference",
        merchantConsumerReference: "yourConsumerReference",
        taxAmount: 0.01,
        mobileNumber: "00441895808221",
        emailAddress: "[email protected]",
        apmData: {
            firstName: "John",
            lastName: "Doe",
            mobileNumber: "00441895808221",
            billingAddress: {
                address1: "13 New Burlington St",
                address2: "Apt 214",
                town: "London",
                country: "GB",
                postcode: "W13 3BG"
            }
        },
        paymentMethod: "Klarna"
    }

    judo.invokePaymentWithKlarna('yourPaymentSession', klarnaConfiguration)
        .then(handleSuccess)
        .catch(handleError)
}

</script>

For the specific input parameters of the products variable, refer to the Klarna Documentation.

Step Three: Handle the Response

All the Judopay Web SDK transaction methods return a promise. Once the authorisation is complete, the promise will be either fulfilled or rejected.

Fulfilled

You will receive a JSON object response (a Judopay receipt object).
- For more information and schema on the JSON object, see API Transaction Response.
Depending on the result the consumer should be redirected to the appropriate outcome page.
- For example, if the result = SUCCESS redirect the consumer to the Success Page.
This page should display the necessary transaction information (found in the Judopay receipt object).

Rejected

You will receive an error object
- For more information on error responses returned, see Web SDK Error Responses.
The consumer should be redirected to an Error Page.

const onFulfillment = (receiptObject) => {
  const { result } = receiptObject
  //redirect to appropriate page depending on the result (success/failure/declined page)
}

const onRejection = (error) => {
  //redirect to error page and handle error
}

For more information on the response codes, see Codes.

Integrating PayByBankApp for React Native

PayByBankApp payment method for React Native is no longer supported and will no longer be updated.

Displaying PayByBankApp as a Payment Method

To display the PayByBankApp as a Payment Method for ReactNative:

Create a JudoPBBAConfiguration:

export interface JudoPBBAConfiguration { mobileNumber?: string emailAddress?: string appearsOnStatement?: string deeplinkScheme?: string deeplinkURL?: string }

Parameter	Description
mobileNumber String	Consumer's mobile number. Sent with the transaction as an additional parameter.
emailAddress String	Consumer's email address. Sent with the transaction as an additional parameter.
appearsOnStatement String	Sent with the transaction as an additional parameter.
deeplinkScheme String	Used in the deeplinking process to identify your app.
deeplinkURL String	Specifies the app has opened as result of a redirect from the Bank App. The deeplink URL contains the information needed to start polling the transaction status.

//With the JudoPBBAConfiguration set, pass it to the main JudoConfiguration:

const pbbaConfig: JudoPBBAConfiguration = {
    mobileNumber: "myMobileNumber",
    emailAddress: "myEmailAddress",
    appearsOnStatement: "myStatement",
    deeplinkScheme: 'my://app'
}
const config: JudoConfiguration = {
    ...
    pbbaConfiguration: pbbaConfig
    ...
}

//Call the invokePayByBankApp method
//Handle the response:

try {
    const judo = new JudoPay(token, secret)
    const response = await judo.invokePayByBankApp(config)
    // Handle response
} catch (exception) {
    // Handle exception
}

DeepLink Scheme

When the consumer invokes the PaybyBankApp transaction, in order to complete the transaction, the app redirects to the user's bank app. When the interaction is finished, the bank app redirects back to your app via the deeplinkScheme sending a deeplinkURL.

The deeplink scheme has to be set manually for iOS and Android, via the Info.plist (iOS) and the AndroidManifest.xml (Android).

The deeplinkURL can be used to start polling the transaction status. The deeplink events can be captured with the linking package already built in ReactNative.

Check the ReactNative sample app for the implementation reference.

Once you have captured the deeplinkURL, pass it to the deeplinkURL parameter of the JudoPBBAConfiguration. If this parameter is set once the invokePayByBankApp is called, the polling process should automatically start.

Integrating PayByBankApp directly to your App for React Native

Not using the Mobile SDK Payments Widget?

To Integrate directly to your app:

Instead of calling invokePayByBankApp:

Add the branded PaybyBankApp button

Add the method as a button press action

Expose the PaybyBankApp button as follows:

import { JudoPBBAButton } from 'judokit-react-native' <TouchableOpacity onPress={this.invokePayByBankApp}> <JudoPBBAButton style={{ flex: 1 }} /> </TouchableOpacity>

Although, the JudoPBBAButton is referred to as a button, it does not handle button-related events, such as onPress. The JudoPBBAButton will need to be wrapped in a component that handles touch events, for example the TouchableOpacity component.

Xamarin Integration

Xamarin SDK has been deprecated and will no longer be updated.

Prerequisites:

You have set up your Judopay account.

Your judoIds and tokens are configured and enabled as appropriate.

For more information on permissions, see Permissions.

You have the latest version of the Android SDK.

For more details, see Integrating Android with Judopay.

You have the latest version of the iOS SDK.

For more details, see Integrating iOS with Judopay.

For Mobile apps, we recommend using payment session authentication.

Integration Requirements:

Xamarin Studio 6.1 / Visual Studio 2015

Xamarin Forms 2.3.2.127

Xcode 8

Android 7.0 (API 24) SDK and build tools 24.0.3 installed

The SDK is compatible with Android Jelly Bean (4.1) and above and iOS 8 and above.

Integrate Judopay into your project by visiting the Xamarin component store:

Search for Judopay

Add the component to your Android and iOS projects

Setting up Xamarin Ensure all integration steps are completed.

Add your app’s sandbox token and secret to your Judo instance in your Xamarin Forms page:

var judo = new Judo { JudoId = "<JUDO_ID>", Token = "<API_TOKEN>", Secret = "<API_SECRET>", Environment = JudoEnvironment.Sandbox, Amount = 1.50m, Currency = "GBP", ConsumerReference = "YourUniqueReference" };

Add additional configuration depending on the project you are integrating, as follows:

Android

iOS

Xamarin.Forms has issues resolving dependencies using DependencyService unless they have been registered.

Add the following in your AppDelegate.cs after the LoadApplication(new App()) method call in your FinishedLaunching method:

DependencyService.Register(); DependencyService.Register(); // Required if using Apple Pay DependencyService.Register();

Going Live with Xamarin

You will need to have tested your app in the sandbox environment before going live. Point to the Live Environment Within your app’s Xamarin Forms page change the line specifying the targeted environment from SANDBOX to LIVE:

Environment = JudoEnvironment.Live,

Replace your sandbox API Token and Secret for the live API Token and Secret

ApiToken = "<API_TOKEN>", ApiSecret = "<API_SECRET>",

Find these in JudopayPortal > Your apps > {app name} > Live Tokens Use the live environment for testing before deploying your app.

PayByBankApp

PayByBankApp payment method is no longer supported and will no longer be updated.

PayByBankApp is a new, easy and secure alternative payment method, that enables your consumers to pay online quickly and securely via their trusted mobile Bank app.

PayByBankApp facilitates the enablement of consumers using bank transfers to easily pay for goods and services online.

Without the need to enter card details or additional passwords every time a purchase is made, it is designed to simplify the checkout experience, giving consumers more control and visibility of their finances when making a purchase.

Consumer Journey on a Merchant's Mobile App

The consumer's journey on a mobile app, when selecting the PayByBankApp button:

Features of PayByBankApp

Features of PayByBankApp:

Strong authentication.

PSD2 Compliant - Meeting the Strong Customer Authentication (SCA) Requirements.

Increased Consumer Trust - Existing bank brands are known to the consumer.

Works through the consumer’s existing Bank app.

Merchant Liability Shifted to the Issuer:

All transactions are authenticated via the consumers Bank app, so all liability is shifted away from the merchant to the issuing bank.

Everything is tokenised:

The merchant, Judopay and the distributor does not have any bank details of the consumer.

Benefits of PayByBankApp to your Consumers

Your consumers:

Can check their balances in real time.

Choose which account to pay from.

No need to enter card details, or any additional passwords.

Can see money move from their account in seconds.

Stay secure with payment authorisation taking place in their Bank app.

Consumers will be auto-enrolled when their online Bank app is installed.

If a consumer uses PayByBankApp with more than one Bank app on their phone, they will get the choice of which Bank app to open at the point of purchase, with the choice of setting their default option.

Once the consumer clicks the PayByBankApp button, they will be taken to their Bank app to complete the payment.

Integrating PayByBankApp - Android

PayByBankApp payment method is no longer supported and will no longer be updated.

To add the PayByBankApp button:

//Insert the button in the layout file:

<com.judopay.judokit.android.ui.common.PayByBankButton
android:id="@+id/payByBankButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content" />

//Set OnClickListener to the PayByBankApp button
//The JudoActivity will start and pass the result to merchant:

payByBankButton.setOnClickListener {
    val intent = Intent(this, JudoActivity::class.java)
    intent.putExtra(JUDO_OPTIONS, judo)
    startActivityForResult(intent, JUDO_PAYMENT_WIDGET_REQUEST_CODE)
 }

//Enable the PayByBankApp in the Payment Selector Screen:
//Build the Judo configuration object:
//Set the payment widget type to:

PaymentWidgetType.PAYMENT_METHODS

//Set the currency:

GBP

val amount = Amount.Builder()
            .setAmount("1")
            .setCurrency(Currency.GBP)
            .build()

Judo.Builder(PaymentWidgetType.PAYMENT_METHODS)
            .setJudoId(judoId)
            .setApiToken(token)
            .setApiSecret(secret)
            .setAmount(amount)
            .setReference(reference)
            .setIsSandboxed(isSandboxed)
            .setSupportedCardNetworks(networks)
            .setPaymentMethods(paymentMethods)
            .setUiConfiguration(uiConfiguration)
            .setGooglePayConfiguration(googlePayConfiguration)
            .setPBBAConfiguration(pbbaConfiguration)
            .build()
//Start JudoActivity with the JudoConfiguration object:

val intent = Intent(this, JudoActivity::class.java)
    intent.putExtra(JUDO_OPTIONS, judo)
    startActivityForResult(intent, JUDO_PAYMENT_WIDGET_REQUEST_CODE)

For the PayByBankApp button to appear in the Payments Widget, a banking app must already be installed.

The PayByBankApp Button is displayed:

To display the PayByBankApp as a Payment Method for Android:

//Add the intent-filter to the AndroidManifest.xml file.
//This registers the deep link URL:

<activity
  android:name=".MainActivity"
  android:launchMode="singleTask">
  <intent-filter>
    <action android:name="android.intent.action.VIEW" />

    <category android:name="android.intent.category.DEFAULT" />
    <category android:name="android.intent.category.BROWSABLE" />

        <data
           android:scheme="your"
           android:host="scheme" />
  </intent-filter>
</activity>

//Create the Judo  object:
//Set PaymentWidgetType to:
//PAY_BY_BANK_APP, or
//PAYMENT_METHODS

//If using the payments widget.
//Set currency:GBP
//Create the PBBAConfiguration object:Set deepLinkScheme to the defined scheme in the AndroidManifest.xml file:

 val pbbaConfiguration = PBBAConfiguration.Builder()
        .setDeepLinkScheme("your://scheme")
        .build()
Judo.Builder(PaymentWidgetType.PAY_BY_BANK_APP)
            .setJudoId(judoId)
            .setApiToken(token)
            .setApiSecret(secret)
            .setAmount(amount)
            .setReference(reference)
            .setIsSandboxed(isSandboxed)
            .setSupportedCardNetworks(networks)
            .setPaymentMethods(paymentMethods)
            .setUiConfiguration(uiConfiguration)
            .setGooglePayConfiguration(googlePayConfiguration)
            .setPBBAConfiguration(pbbaConfiguration)
            .build()

//Override the onNewIntent method to catch the deeplink URL
//Add the deepLinkURL to the PBBAConfiguration object
//Start JudoActivity with the desired payment widget type
//Add the same logic in onCreate

 override fun onNewIntent(intent: Intent?) {
        checkForDeepLink(intent)
        super.onNewIntent(intent)
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        ...
        checkForDeepLink()
        ...
    }

    private fun checkForDeepLink(intent: Intent? = this.intent) {
        val uri = intent?.data
        val newIntent = Intent(this, JudoActivity::class.java)
        if (uri.contains("your://scheme")) {
            val newPbbaConfig = pbbaConfiguration.newBuilder()
                .setDeepLinkURL(uri)
                .build()
            val judo = getJudo(PaymentWidgetType.PAY_BY_BANK_APP).newBuilder()
                .setPBBAConfiguration(newPbbaConfig)
                .build()
            newIntent.putExtra(JUDO_OPTIONS, judo)
            startActivityForResult(newIntent, JUDO_PAYMENT_WIDGET_REQUEST_CODE)
        }
    }

    private fun getJudo(widgetType: PaymentWidgetType): Judo {
        return Judo.Builder(widgetType)
            .setJudoId(judoId)
            .setApiToken(token)
            .setApiSecret(secret)
            .setAmount(amount)
            .setReference(reference)
            .setIsSandboxed(isSandboxed)
            .setSupportedCardNetworks(networks)
            .setPaymentMethods(paymentMethods)
            .setUiConfiguration(uiConfiguration)
            .setGooglePayConfiguration(googlePayConfiguration)
            .setPBBAConfiguration(pbbaConfiguration)
            .build()

//To catch the first response, create a broadcastReceiver:

private val broadcastReceiver = object : BroadcastReceiver() {
    override fun onReceive(context: Context?, intent: Intent?) {
    val result = intent?.getParcelableExtra<JudoResult>(PBBA_RESULT)
        // Handle result
    }
}

//Register the defined receiver in onCreate:

LocalBroadcastManager.getInstance(this).registerReceiver(
    orderIdReceiver,
    IntentFilter(BR_PBBA_RESULT)
)

//Catch the result in the onActivityResult method:

override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
   super.onActivityResult(requestCode, resultCode, data)

     if (requestCode == JUDO_PAYMENT_WIDGET_REQUEST_CODE) {
       when (resultCode) {
         PAYMENT_SUCCESS -> {
         val result = data?.getParcelableExtra<JudoResult>(JUDO_RESULT)
             //Process successful payment
              }
         PAYMENT_CANCELLED -> {
         val result = data?.getParcelableExtra<JudoResult>(JUDO_RESULT)
            //Process cancelled payment
              }
         PAYMENT_ERROR -> {
         val error = data?.getParcelableExtra<JudoError>(JUDO_ERROR)
            //Process unsuccessful payment
              }
          }
      }
}

Integrating PayByBankApp Directly to your App for Android

Not using the Mobile SDK Payments Widget?

To Integrate directly to your app:

//Insert the button in the layout file:

<com.judokit.android.ui.common.PayByBankButton
  android:id="@+id/payByBankButton"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  />

//Add intent-filter to the AndroidManifest.xml file.
//This will register the deep link URL:

activity
 android:name=".MainActivity"
 android:launchMode="singleTask">
 <intent-filter>
 <action android:name="android.intent.action.VIEW" />

 <category android:name="android.intent.category.DEFAULT" />
 <category android:name="android.intent.category.BROWSABLE" />

 <data
   android:scheme="your"
   android:host="scheme" />
 </intent-filter>
 </activity>

//Create the Judo object:
//Set the PaymentWidgetType to PAY_BY_BANK_APP
//Create the PBBAConfiguration object
//Set deepLinkScheme to the defined scheme in the AndroidManifest.xml file:

 val pbbaConfiguration = PBBAConfiguration.Builder()
        .setDeepLinkScheme("your://scheme")
        .build()
Judo.Builder(PaymentWidgetType.PAY_BY_BANK_APP)
            .setJudoId(judoId)
            .setApiToken(token)
            .setApiSecret(secret)
            .setAmount(amount)
            .setReference(reference)
            .setIsSandboxed(isSandboxed)
            .setSupportedCardNetworks(networks)
            .setPaymentMethods(paymentMethods)
            .setUiConfiguration(uiConfiguration)
            .setGooglePayConfiguration(googlePayConfiguration)
            .setPBBAConfiguration(pbbaConfiguration)
            .build()

//Override the onNewIntent method to catch the deeplink URL:
//Add the deepLinkURL to the PBBAConfiguration object
//Start JudoActivity with the desired payment widget type
//Add the same logic in onCreate

 override fun onNewIntent(intent: Intent?) {
        checkForDeepLink(intent)
        super.onNewIntent(intent)
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        ...
        checkForDeepLink()
        ...
    }

    private fun checkForDeepLink(intent: Intent? = this.intent) {
        val uri = intent?.data
        val newIntent = Intent(this, JudoActivity::class.java)
        if (uri.contains("your://scheme")) {
            val newPbbaConfig = pbbaConfiguration.newBuilder()
                .setDeepLinkURL(uri)
                .build()
            val judo = getJudo(PaymentWidgetType.PAY_BY_BANK_APP).newBuilder()
                .setPBBAConfiguration(newPbbaConfig)
                .build()
            newIntent.putExtra(JUDO_OPTIONS, judo)
            startActivityForResult(newIntent, JUDO_PAYMENT_WIDGET_REQUEST_CODE)
        }
    }

    private fun getJudo(widgetType: PaymentWidgetType): Judo {
        return Judo.Builder(widgetType)
            .setJudoId(judoId)
            .setApiToken(token)
            .setApiSecret(secret)
            .setAmount(amount)
            .setReference(reference)
            .setIsSandboxed(isSandboxed)
            .setSupportedCardNetworks(networks)
            .setPaymentMethods(paymentMethods)
            .setUiConfiguration(uiConfiguration)
            .setGooglePayConfiguration(googlePayConfiguration)
            .setPBBAConfiguration(pbbaConfiguration)
            .build()

//To catch the first response, create a broadcastReceiver:

private val broadcastReceiver = object : BroadcastReceiver() {
    override fun onReceive(context: Context?, intent: Intent?) {
    val result = intent?.getParcelableExtra<JudoResult>(PBBA_RESULT)
        // Handle result
    }
}

//Register the defined receiver in onCreate:

LocalBroadcastManager.getInstance(this).registerReceiver(
    orderIdReceiver,
    IntentFilter(BR_PBBA_RESULT)
)

//Set OnClickListener to the previously defined PayByBankApp button
//JudoActivity will start and pass the result to merchant:

payByBankButton.setOnClickListener {
  val intent = Intent(this, JudoActivity::class.java)
  intent.putExtra(JUDO_OPTIONS, judo)
  startActivityForResult(intent, JUDO_PAYMENT_WIDGET_REQUEST_CODE)
 }

//Catch the result in the onActivityResult method:

override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
  super.onActivityResult(requestCode, resultCode, data)

    if (requestCode == JUDO_PAYMENT_WIDGET_REQUEST_CODE) {
       when (resultCode) {
       PAYMENT_SUCCESS -> {
       val result = data?.getParcelableExtra<JudoResult>(JUDO_RESULT)
           //Process successful payment
             }
       PAYMENT_CANCELLED -> {
       val result = data?.getParcelableExtra<JudoResult>(JUDO_RESULT)
           //Process cancelled payment
             }
       PAYMENT_ERROR -> {
       val error = data?.getParcelableExtra<JudoError>(JUDO_ERROR)
           //Process unsuccessful payment
                }
            }
        }
    }
<com.judokit.android.ui.common.PayByBankButton
  android:id="@+id/payByBankButton"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  />

//Add intent-filter to the AndroidManifest.xml file.
//This will register the deep link URL:

activity
 android:name=".MainActivity"
 android:launchMode="singleTask">
 <intent-filter>
 <action android:name="android.intent.action.VIEW" />

 <category android:name="android.intent.category.DEFAULT" />
 <category android:name="android.intent.category.BROWSABLE" />

 <data
   android:scheme="your"
   android:host="scheme" />
 </intent-filter>
 </activity>

//Create the Judo object:
//Set the PaymentWidgetType to PAY_BY_BANK_APP
//Create the PBBAConfiguration object
//Set deepLinkScheme to the defined scheme in the AndroidManifest.xml file:

 val pbbaConfiguration = PBBAConfiguration.Builder()
        .setDeepLinkScheme("your://scheme")
        .build()
Judo.Builder(PaymentWidgetType.PAY_BY_BANK_APP)
            .setJudoId(judoId)
            .setApiToken(token)
            .setApiSecret(secret)
            .setAmount(amount)
            .setReference(reference)
            .setIsSandboxed(isSandboxed)
            .setSupportedCardNetworks(networks)
            .setPaymentMethods(paymentMethods)
            .setUiConfiguration(uiConfiguration)
            .setGooglePayConfiguration(googlePayConfiguration)
            .setPBBAConfiguration(pbbaConfiguration)
            .build()

//Override the onNewIntent method to catch the deeplink URL:
//Add the deepLinkURL to the PBBAConfiguration object
//Start JudoActivity with the desired payment widget type
//Add the same logic in onCreate

 override fun onNewIntent(intent: Intent?) {
        checkForDeepLink(intent)
        super.onNewIntent(intent)
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        ...
        checkForDeepLink()
        ...
    }

    private fun checkForDeepLink(intent: Intent? = this.intent) {
        val uri = intent?.data
        val newIntent = Intent(this, JudoActivity::class.java)
        if (uri.contains("your://scheme")) {
            val newPbbaConfig = pbbaConfiguration.newBuilder()
                .setDeepLinkURL(uri)
                .build()
            val judo = getJudo(PaymentWidgetType.PAY_BY_BANK_APP).newBuilder()
                .setPBBAConfiguration(newPbbaConfig)
                .build()
            newIntent.putExtra(JUDO_OPTIONS, judo)
            startActivityForResult(newIntent, JUDO_PAYMENT_WIDGET_REQUEST_CODE)
        }
    }

    private fun getJudo(widgetType: PaymentWidgetType): Judo {
        return Judo.Builder(widgetType)
            .setJudoId(judoId)
            .setApiToken(token)
            .setApiSecret(secret)
            .setAmount(amount)
            .setReference(reference)
            .setIsSandboxed(isSandboxed)
            .setSupportedCardNetworks(networks)
            .setPaymentMethods(paymentMethods)
            .setUiConfiguration(uiConfiguration)
            .setGooglePayConfiguration(googlePayConfiguration)
            .setPBBAConfiguration(pbbaConfiguration)
            .build()

//To catch the first response, create a broadcastReceiver:

private val broadcastReceiver = object : BroadcastReceiver() {
    override fun onReceive(context: Context?, intent: Intent?) {
    val result = intent?.getParcelableExtra<JudoResult>(PBBA_RESULT)
        // Handle result
    }
}

//Register the defined receiver in onCreate:

LocalBroadcastManager.getInstance(this).registerReceiver(
    orderIdReceiver,
    IntentFilter(BR_PBBA_RESULT)
)

//Set OnClickListener to the previously defined PayByBankApp button
//JudoActivity will start and pass the result to merchant:

payByBankButton.setOnClickListener {
  val intent = Intent(this, JudoActivity::class.java)
  intent.putExtra(JUDO_OPTIONS, judo)
  startActivityForResult(intent, JUDO_PAYMENT_WIDGET_REQUEST_CODE)
 }

//Catch the result in the onActivityResult method:

override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
  super.onActivityResult(requestCode, resultCode, data)

    if (requestCode == JUDO_PAYMENT_WIDGET_REQUEST_CODE) {
       when (resultCode) {
       PAYMENT_SUCCESS -> {
       val result = data?.getParcelableExtra<JudoResult>(JUDO_RESULT)
           //Process successful payment
             }
       PAYMENT_CANCELLED -> {
       val result = data?.getParcelableExtra<JudoResult>(JUDO_RESULT)
           //Process cancelled payment
             }
       PAYMENT_ERROR -> {
       val error = data?.getParcelableExtra<JudoError>(JUDO_ERROR)
           //Process unsuccessful payment
                }
            }
        }
    }

Integrating PayByBankApp - iOS

PayByBankApp payment method is no longer supported and will no longer be updated.

Integrating PayByBankApp using the Payments Widget for iOS

Displaying PayByBankApp as a Payment Method for iOS

To display the PayByBankApp as a Payment Method for iOS:

//In the info.plist of app and LSApplicationQueriesSchemes add the URL scheme of the merchant(CFBundleURLSchemes)::

<key>CFBundleURLTypes</key>
    <array>
        <dict>
            <key>CFBundleTypeRole</key>
            <string>Editor</string>
            <key>CFBundleURLSchemes</key>
            <array>
                <string>judo</string>
            </array>
        </dict>
    </array>
    <key>LSApplicationQueriesSchemes</key>
    <array>
        <string>zapp</string>
    </array>


//Add deeplink to the pbbaConfiguration object:

  self.pbbaConfig = [JPPBBAConfiguration new];
  self.pbbaConfig.deeplinkScheme = @"judo://pay";

//To enable the PayByBankApp set the following options:
//Add the pbba method to:
//The paymentMethods  array in JPConfiguration
//Set currency: GBP

Integrating PayByBankApp Directly to your App for iOS

Not using the Mobile SDK Payments Widget?

To Integrate directly to your app:

Prerequisites

"Bank3 Test App" - Contact: [email protected] to get access, so you can test the PayByBankApp flow.

You have set your app's URL Scheme.

You have added zapp to the ApplicationQueriesSchemes:

An example of the Info.plist file:

Step 1: Initialising the SDK

To integrate with the Judopay SDK directly to your iOS app, you can use either a:

basic authorization

session authorization

You can select the sandbox mode for testing purposes. Set the value:isSandboxed = true

let authorization: JPAuthorization = JPBasicAuthorization(token: JUDO_TOKEN, andSecret: JUDO_SECRET) judoKit = JudoKit(authorization: authorization) judoKit.isSandboxed = true

Step 2: Check for Installed Bank Apps

To ensure a good customer experience, it is recommended to only display the PayByBankApp button when the consumer has a compatible mobile Banking app.

Before adding the PayByBankApp button in Step 3, check if any compatible PayByBankApp Bank apps are installed, using the JudoKit isBankingAppAvailable method:

if (JudoKit.isBankingAppAvailable()) { // Add the PBBA button }

Step 3: Adding the PayByBankApp Button

We recommend you use the branded button to invoke a PayByBankApp transaction, however it is not mandatory.

The PayByBankApp Button uses the delegate property. The delegate property points to any class that implements the JPPBBAButtonDelegate interface:

let pbbaButton = JPPBBAButton(frame: container.bounds); pbbaButton.delegate = self view.addSubview(pbbaButton)

The JPBBAButton is a subclass of UIView, not UIButton. Take this into consideration when integrating the PayByBankApp button via the Interface Builder.

The JPPBBAButtonDelegate interface has only one method: pbbaButtonDidPress(sender:), which is responsible for handling the button tap action.

Recommended PayByBankApp Button Size:

Minimum: Width 160pt | Height 40pt

Maximum: Width 310pt | Height 48pt

Step 4: Adding the Delegate Method

The delegate method is responsible for the button tap action.

To add the delegate method:

Call the invokePBBA method in the Judopay SDK and provide the required configuration parameters:

func pbbaButtonDidPress(_ sender: JPPBBAButton) {

    let amount = JPAmount(AMOUNT_VALUE, currency: "GBP")
    let reference = JPReference(consumerReference: CONSUMER_REF)

    configuration = JPConfiguration(judoID: JUDO_ID, amount: amount, reference: reference)

    let pbbaConfiguration = JPPBBAConfiguration()
    pbbaConfiguration.mobileNumber = YOUR_MOBILE_NUMBER
    pbbaConfiguration.emailAddress = YOUR_EMAIL_ADDRESS
    pbbaConfiguration.appearsOnStatement = YOUR_APPEARS_ON_STATEMENT
    pbbaConfiguration.deeplinkScheme = YOUR_DEEPLINK_SCHEME

    configuration.pbbaConfiguration = pbbaConfiguration

    judoKit.invokePBBA(with: configuration) { [weak self] (response, error) in
        if let response = response {
            // Handle response
        }

        if let error = error {
            // Handle error
        }
    }
}

Each Judopay transaction takes a JPConfiguration instance as a parameter.The configuration object sets up all the required parameters for a successful transaction. It also sets any optional parameters which you can configure to personalise the payment flow.

PayByBankApp transactions require some extra parameters to be set up, in addition to the basic transaction configuration. These optional parameters are defined in the JPPBBAConfiguration class, and used to add additional information to the transaction. The following two parameters are recommended:

deeplinkScheme

deeplinkURL

Call the invokePBBA method from the Judopay SDK.

The PayByBankApp flow will be triggered, opening the Bank app for consumers to make their transactions.

The deeplinkScheme

A deeplinkScheme identifies your app during the redirect process. When a consumer has completed their transaction using their bank app, the bank app will attempt to redirect the consumer back to your app.

The deeplinkScheme name should match the URL scheme defined in the Info.plist file. For example: myapp -> myapp:/

The deeplinkURL

The deeplink URL enables the app to open the consumer's mobile Banking app, so they can complete the transaction.

When the Bank app redirects the consumer back to your app, it also provides you with a URL that you can use to poll the transaction status.

Add the deeplinkURL to the main configuration object. This will be sent as a parameter to the transaction method.

It is a good idea to handle the errors within this step.

The most important information from the response is the orderId, accessed via response.orderDetails.orderId.

The orderId is used to manually check the transaction status.

Step 5: Handling the deeplinkURL

Following the completed transaction, the bank flow will be triggered when the invokePBBA method is called, even if the deeplinkURL parameter is not provided.

However, if the deeplinkURL parameter is provided, calling invokePBBA will trigger the transaction status polling logic.

To handle the deeplinkURL:

Listen to this event.

Capture the redirect URL.

To capture the redirect URL:

In your AppDelegate file, add the following methods:

application(_:open:options:)

application(_:didFinishLaunchingWithOptions:)

Pass the URL to the JPPBBAConfiguration instance. For the purpose of this exercise, the deeplinkURL is saved in the app's UserDefaults. You can save the deeplinkURL in the Keychain or any alternative.

func application(
    _ application: UIApplication,
    didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?
    ) -> Bool {

     if let url = launchOptions?[.url] as? URL {
         UserDefaults.standard.set(url, forKey: "deeplinkURL")
     }

     ...
}

func application(
    _ app: UIApplication, open url: URL,
    options: [UIApplication.OpenURLOptionsKey : Any] = [:]
    ) -> Bool {

     UserDefaults.standard.set(url, forKey: "deeplinkURL")

     ...
}

Step 6: Polling the Transaction Status

Once the Bank app has redirected the consumer back to your app, you can start polling the transaction status.

To start the PayByBankApp polling status:

Add the deeplinkURL to the configuration

Call the invokePBBA(configuration:) method:

func handleDeeplink() {
     guard let url = UserDefaults.standard.url(forKey: "deeplinkURL") else {
         return
     }

     configuration.pbbaConfiguration?.deeplinkURL = url

     judoKit.invokePBBA(with: configuration) { [weak self] (response, error) in
         if let response = response {
             // Handle response
         }

         if let error = error {
             // Handle error
         }
     }
 }

In the JPResponse object, you can inspect the orderDetails containing information about the transaction status.

Another option is to put a check in your viewDidAppear(animated:) method. If a deeplinkURL is set up, add it to the configuration and call the invokePBBA(configuration:) method again. This will start the polling status.

Manually Checking the Transaction Status

There may be cases where the Bank app closes before the transaction flow completes. This would mean the deeplinkURL is not returned and the polling process to check the transaction status will not begin.

To manually check the transaction status:

Invoke a manual order status request:

Get the orderId from the initial request:

When the Bank app is invoked during the PayByBankApp request, (Step 4) the orderId is captured from the callback response:

judoKit.invokePBBA(with: configuration) { [weak self] (response, error) in
    if let response = response {
        let orderId = response.orderDetails?.orderId
            // Persist the orderId for later use
}
}

Use the orderId to manually check the transaction status: You would do this in the same way as Initialising the Judopay SDK, see Step 1: Initialising the SDK.

Call the invokeOrderStatus method, with the orderId:

let apiService = JPApiService(authorization: authorization, isSandboxed: true) apiService.invokeOrderStatus(withOrderId: orderId) { (response, error) in // Handle response }

The response will contain both the transaction status, and the order details of the transaction.

For a sample app, see Judopay's Judokit for iOS on Github.

Deprecated Integration Methods

PHP Server SDK Integration

Prerequisites

Integration

Setup

Check Card

Save Card

Token Payments

Creating a PreAuth

Creating a Collection

Voiding a PreAuth Transaction

Creating a Payment

3D Secure 2 Transaction Flow

Additional 3D Secure 2 Parameters

ResumeThreeDSecureTwo Model Parameters

CompleteThreeDSecureTwo Model Parameters

Payment Receipt

Payment Receipt Model Parameters

Creating a Refund

Going Live

WooCommerce Plugin

Prerequisites

WordPress Configuration Requirement

Installation

Configure WooCommerce

Configure the Judopay Plugin

Checkout View

Success and Failure URLs

Register Card

Testing RegisterCard

RegisterCard Scenarios (Positive Flow)

Test Card Data

Register Card Request Parameters

RegisterCard Scenarios (Negative Flow)

Integrating iDEAL

Integrating iDEAL for React Native

Integrating iDEAL for Android

Integrating iDEAL for iOS

Integrating iDEAL via Web SDK

Prerequisites

Step One: Add the iDEAL payment tab

Transaction Timeout

Step Two: Making an iDEAL Transaction

iDEAL Configuration Parameter Descriptions

Step Three: Handle the Response

Integrating Klarna

Integrating Klarna via Web SDK

Prerequisites

Step One: Display the Klarna Button

Klarna Button Style

Step Two: Handle the Klarna Button

Step Three: Handle the Response

Integrating PayByBankApp for React Native

Integrating PayByBankApp using the Payments Widget for React Native

Displaying PayByBankApp as a Payment Method

DeepLink Scheme

Integrating PayByBankApp directly to your App for React Native

Xamarin Integration

PayByBankApp

Consumer Journey on a Merchant's Mobile App

Features of PayByBankApp

Benefits of PayByBankApp to your Consumers

Integrating PayByBankApp - Android

Integrating PayByBankApp Directly to your App for Android

Integrating PayByBankApp - iOS

Integrating PayByBankApp Directly to your App for iOS

The deeplinkScheme
